Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "VEHICLE S/W MANAGEMENT " of concerned component with KDS.

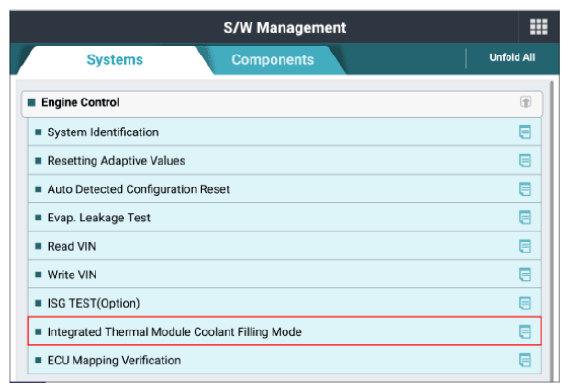

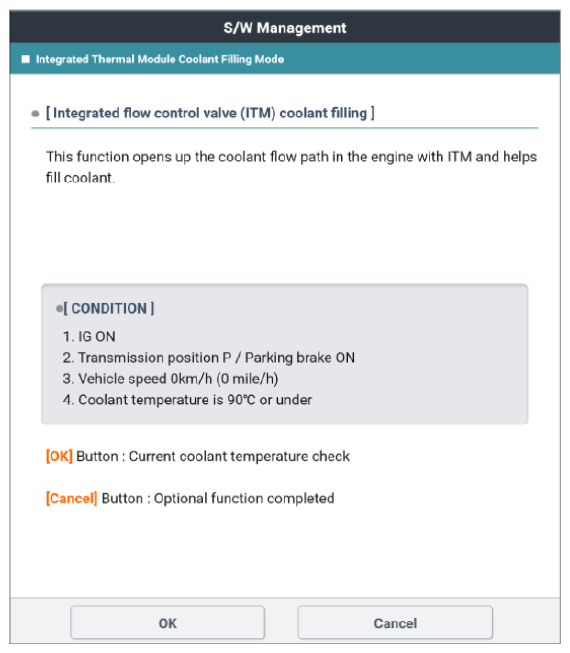

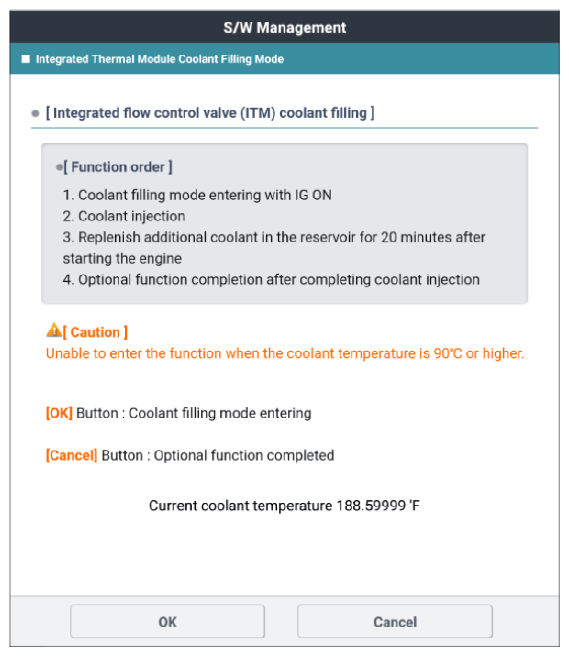

 Fig.1 to 3
G13415577Courtesy of KIA MOTORS AMERICA, INC.
G13415578Courtesy of KIA MOTORS AMERICA, INC.
G13415579Courtesy of KIA MOTORS AMERICA, INC.
