Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS/GDS to Data Link Connector (DLC).
  2. Perform "VEHICLE S/W MANAGEMENT" of concerned component with KDS/GDS.
 Fig.1 to 2
Fig.3 to 5
CAUTION: Using KDS/GDS performs the "Vehicle S/W Management" → "CLU Variant Coding" item.
The DTC is erased when programming is properly performed.

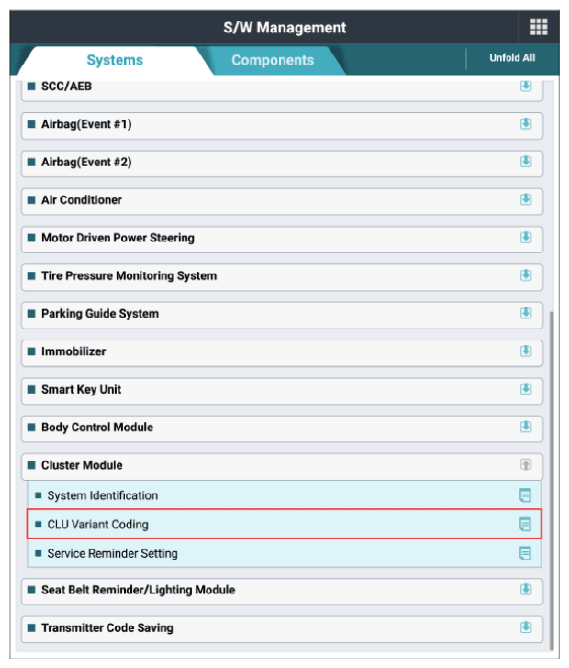

G13414150Courtesy of KIA MOTORS AMERICA, INC.

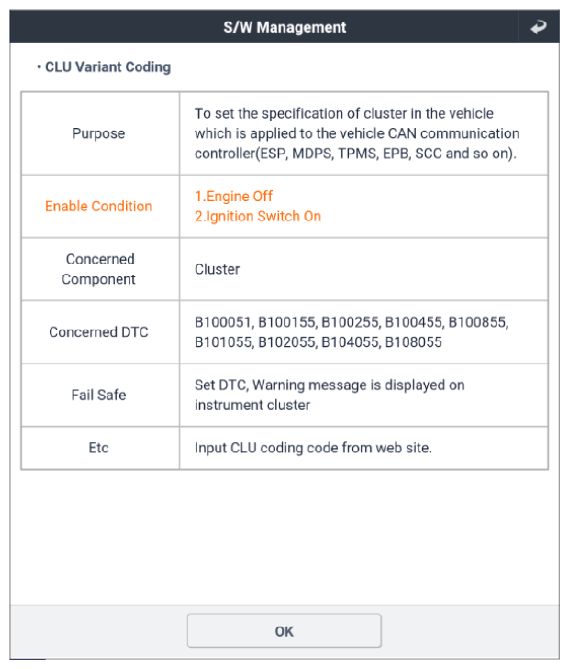

G13414151Courtesy of KIA MOTORS AMERICA, INC.

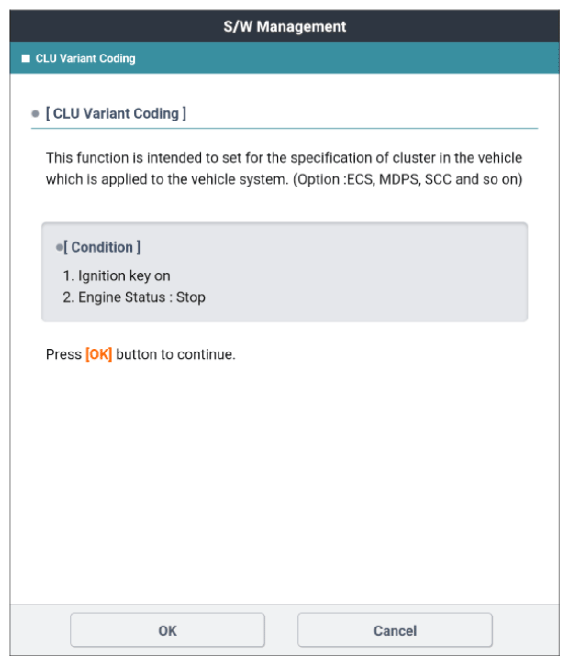

G13414152Courtesy of KIA MOTORS AMERICA, INC.

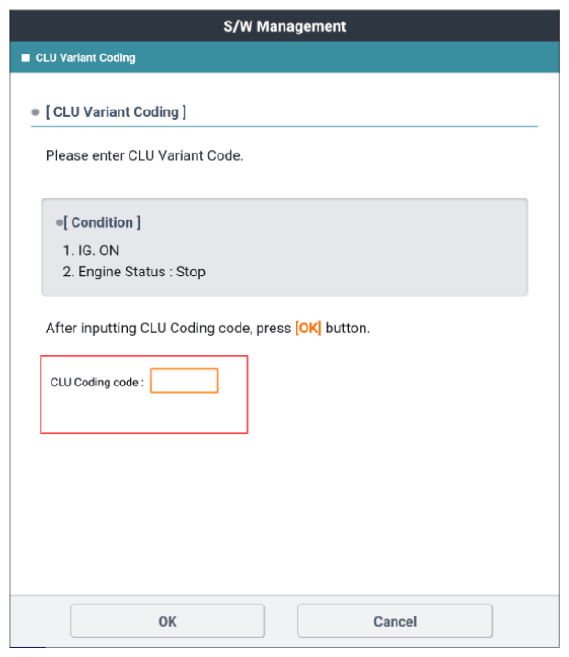

G13414153Courtesy of KIA MOTORS AMERICA, INC.
G13414154Courtesy of KIA MOTORS AMERICA, INC.

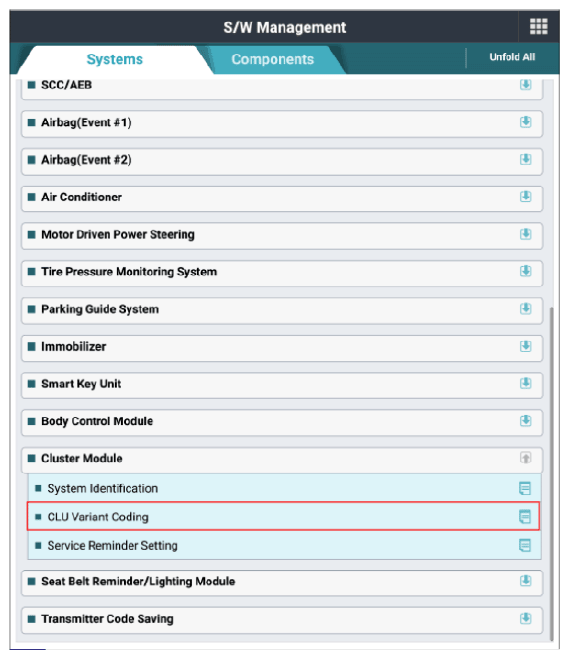

G13414155Courtesy of KIA MOTORS AMERICA, INC.

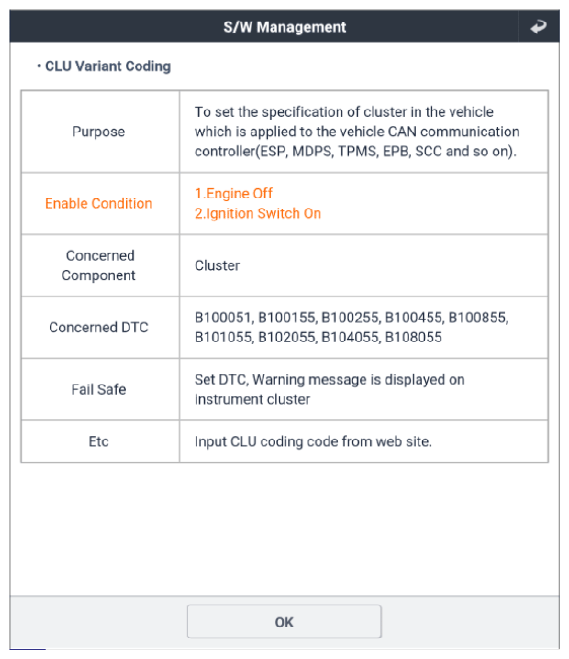

G13414156Courtesy of KIA MOTORS AMERICA, INC.

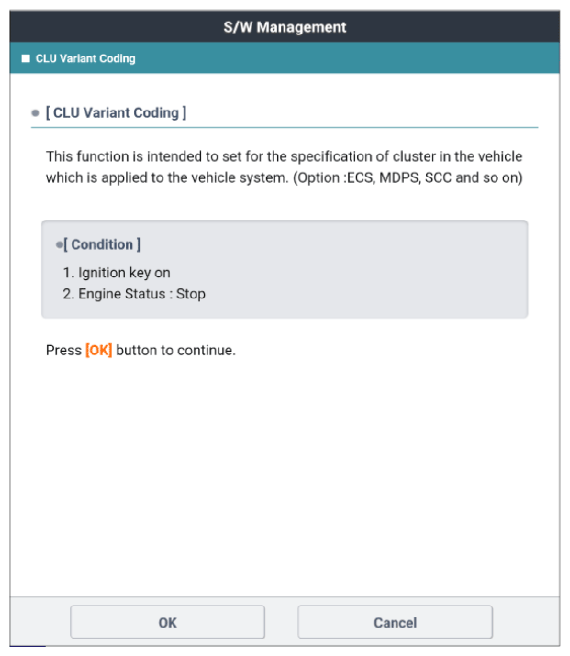

G13414157Courtesy of KIA MOTORS AMERICA, INC.

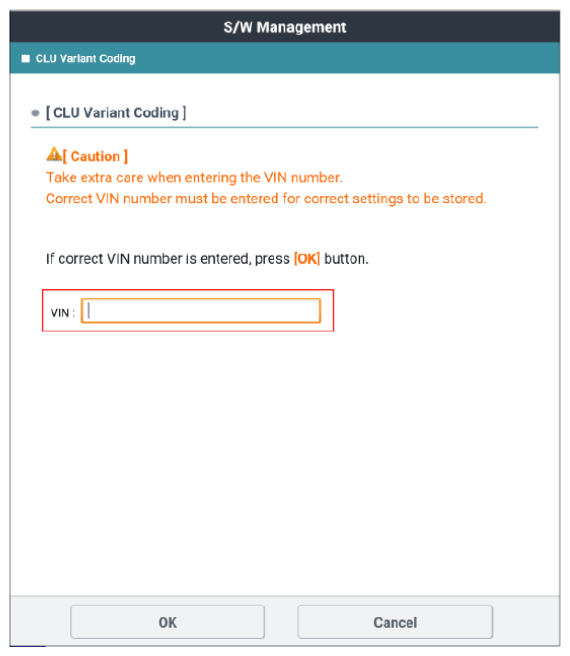

G13414158Courtesy of KIA MOTORS AMERICA, INC.
G13414159Courtesy of KIA MOTORS AMERICA, INC.
