Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS/GDS to Data Link Connector (DLC).
  2. Perform "VEHICLE S/W MANAGEMENT" of concerned component with KDS/GDS.
 Fig.1 to 2
Fig.3 to 5
CAUTION: Using KDS/GDS performs the "Vehicle S/W Management" → "CLU Variant Coding" item.
The DTC is erased when programming is properly performed.

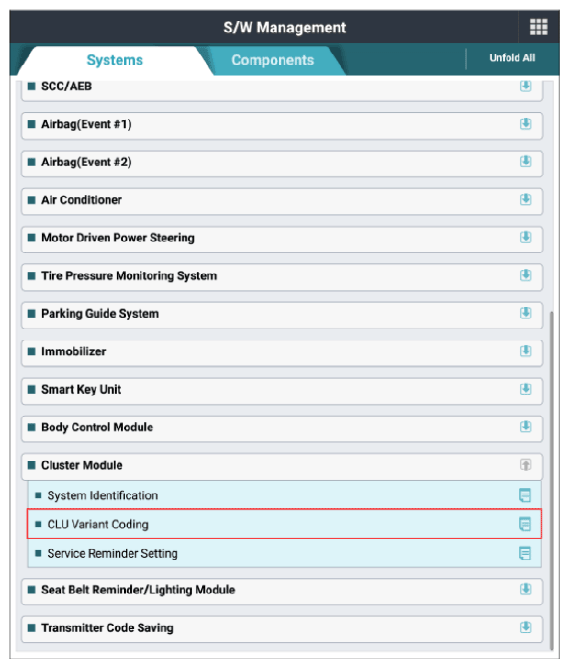

G13414094Courtesy of KIA MOTORS AMERICA, INC.

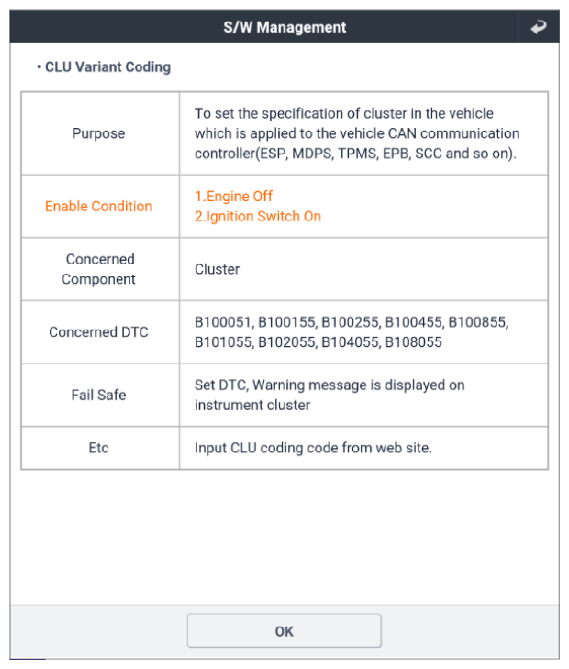

G13414095Courtesy of KIA MOTORS AMERICA, INC.

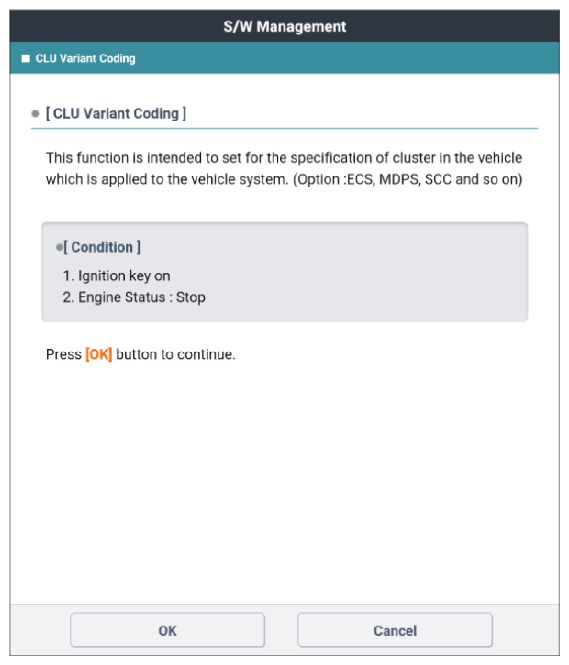

G13414096Courtesy of KIA MOTORS AMERICA, INC.

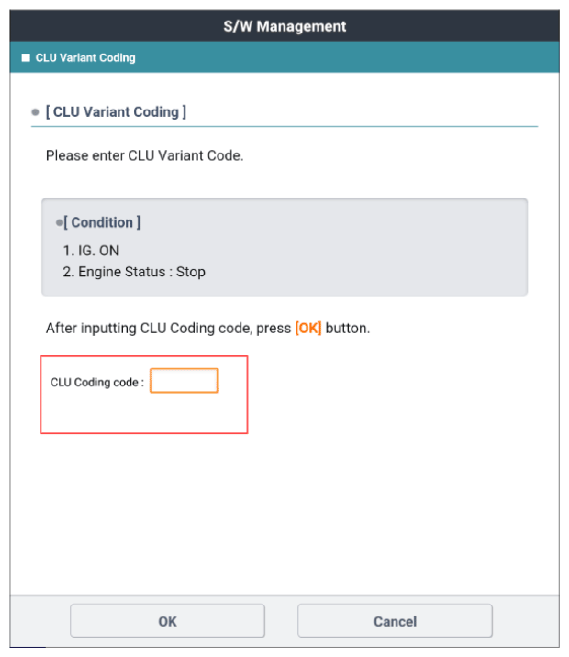

G13414097Courtesy of KIA MOTORS AMERICA, INC.
G13414098Courtesy of KIA MOTORS AMERICA, INC.

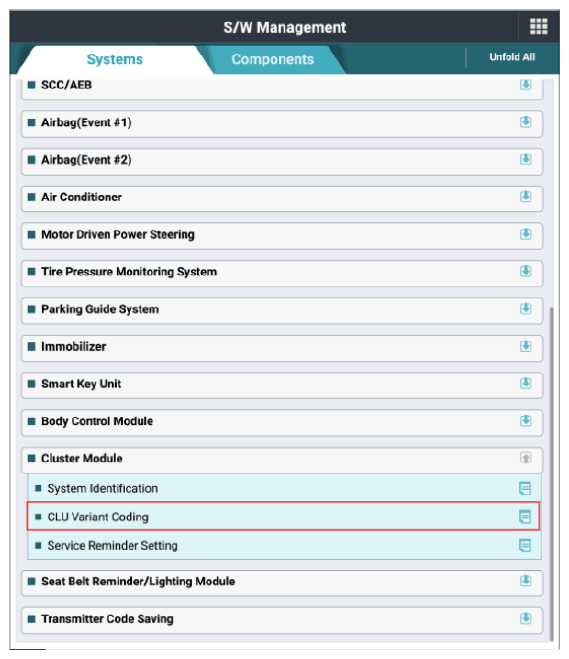

G13414099Courtesy of KIA MOTORS AMERICA, INC.

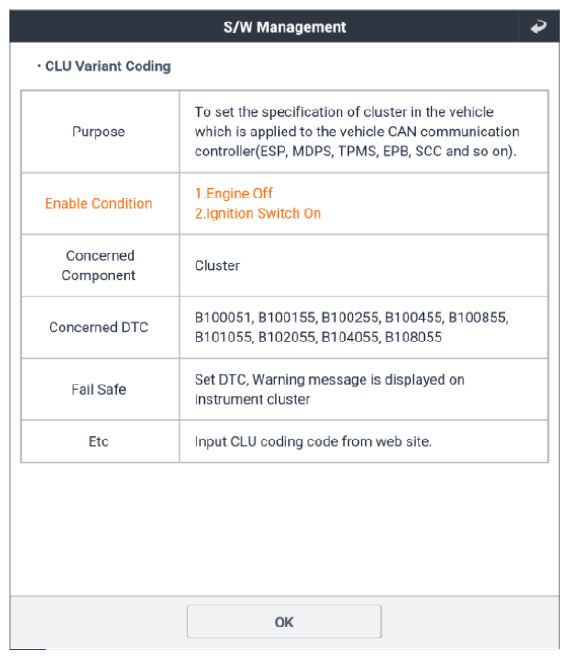

G13414100Courtesy of KIA MOTORS AMERICA, INC.

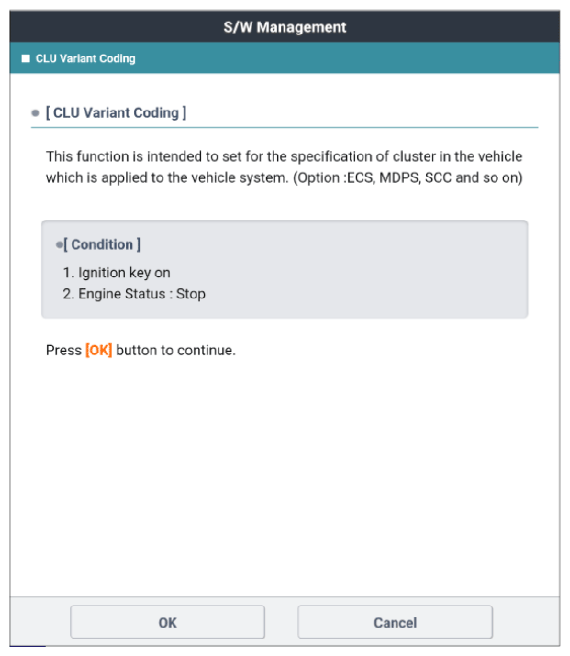

G13414101Courtesy of KIA MOTORS AMERICA, INC.

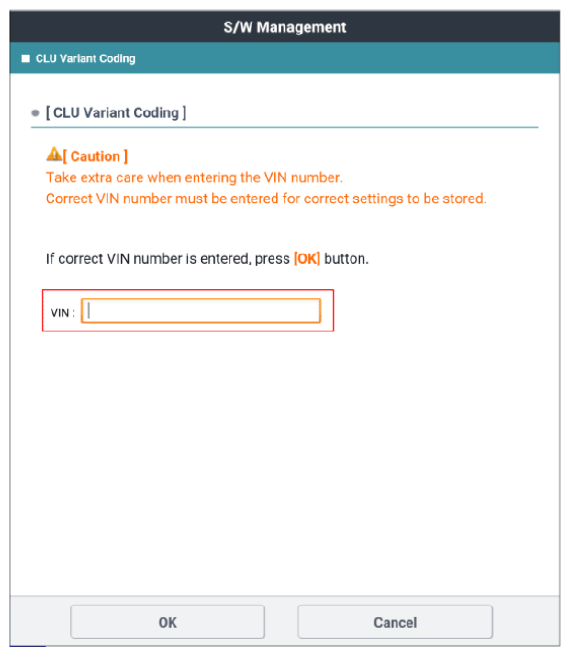

G13414102Courtesy of KIA MOTORS AMERICA, INC.
G13414103Courtesy of KIA MOTORS AMERICA, INC.
