Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS/GDS to Data Link Connector (DLC).
  2. Perform "VEHICLE S/W MANAGEMENT" of concerned component with KDS/GDS.
 Fig.1 to 2
Fig.3 to 5
CAUTION: Using KDS/GDS performs the "Vehicle S/W Management" → "CLU Variant Coding" item.
The DTC is erased when programming is properly performed.

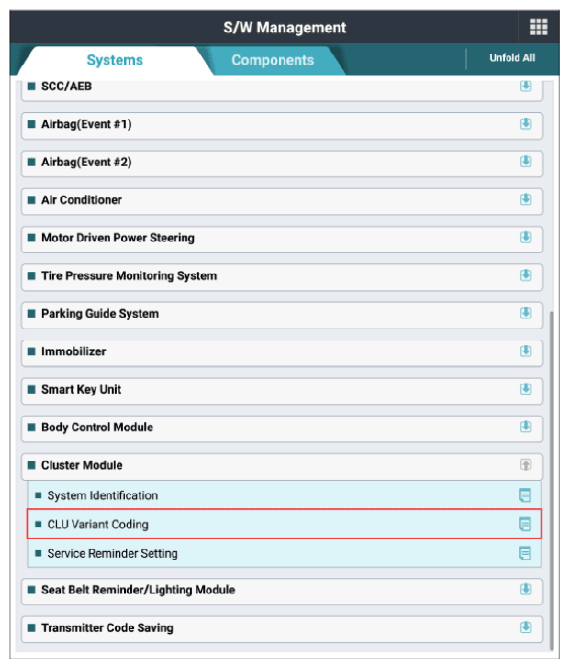

G13414066Courtesy of KIA MOTORS AMERICA, INC.

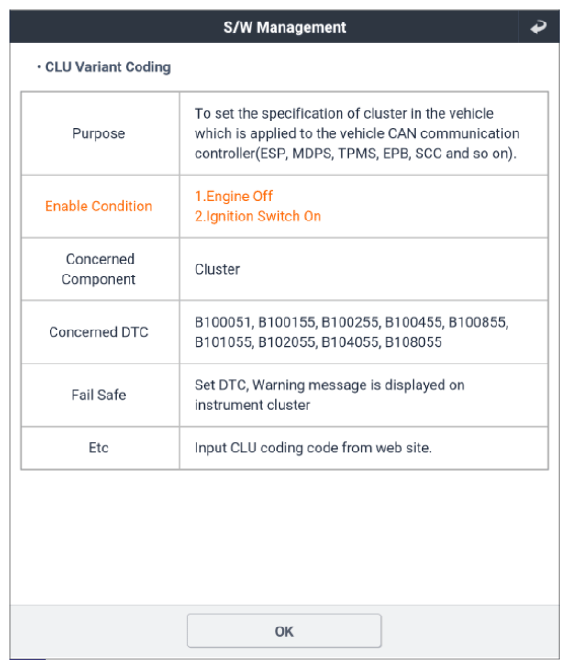

G13414067Courtesy of KIA MOTORS AMERICA, INC.

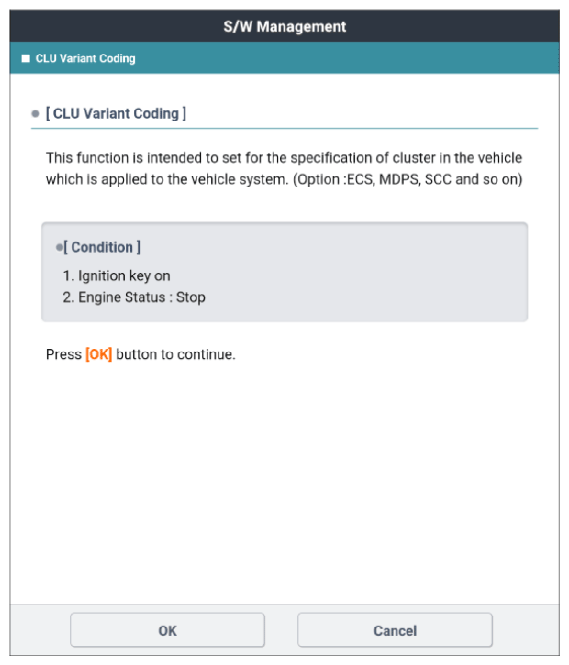

G13414068Courtesy of KIA MOTORS AMERICA, INC.

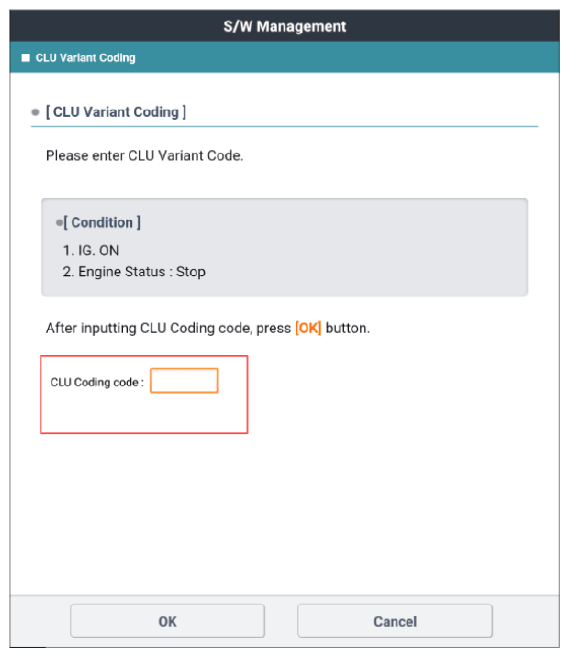

G13414069Courtesy of KIA MOTORS AMERICA, INC.
G13414070Courtesy of KIA MOTORS AMERICA, INC.

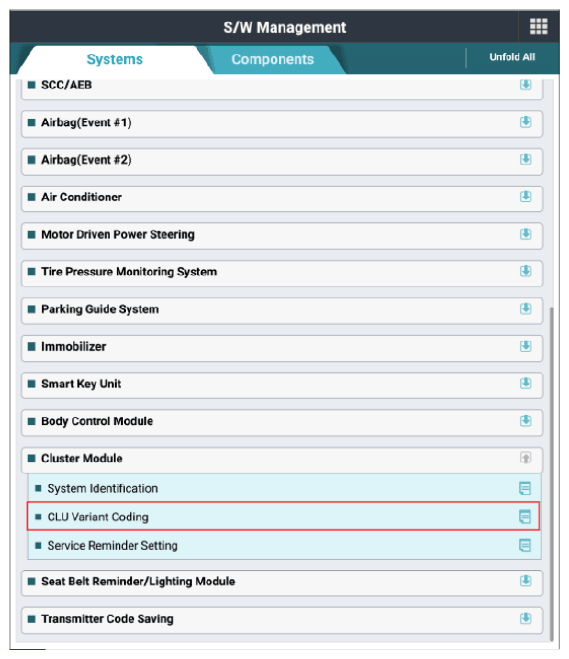

G13414071Courtesy of KIA MOTORS AMERICA, INC.

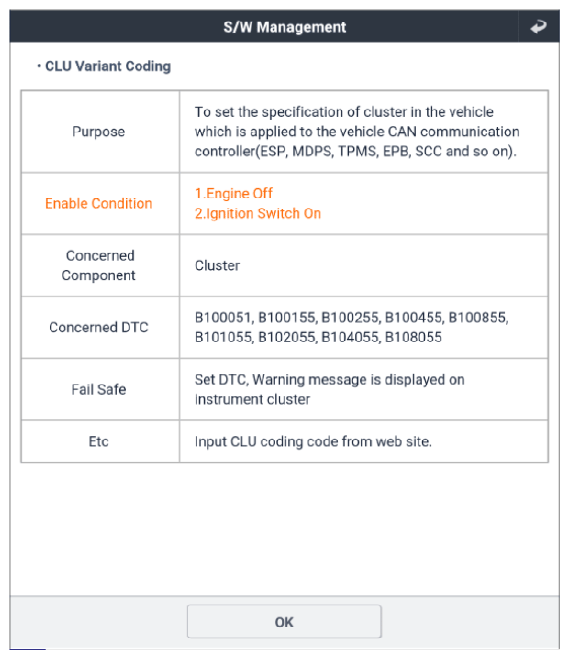

G13414072Courtesy of KIA MOTORS AMERICA, INC.

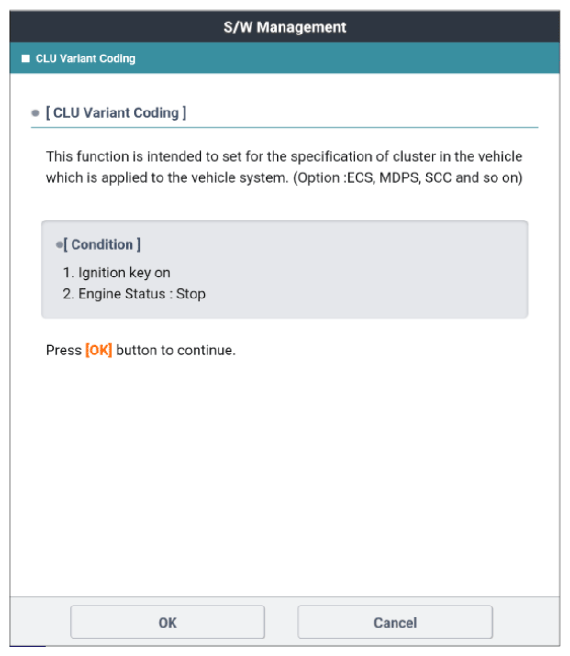

G13414073Courtesy of KIA MOTORS AMERICA, INC.

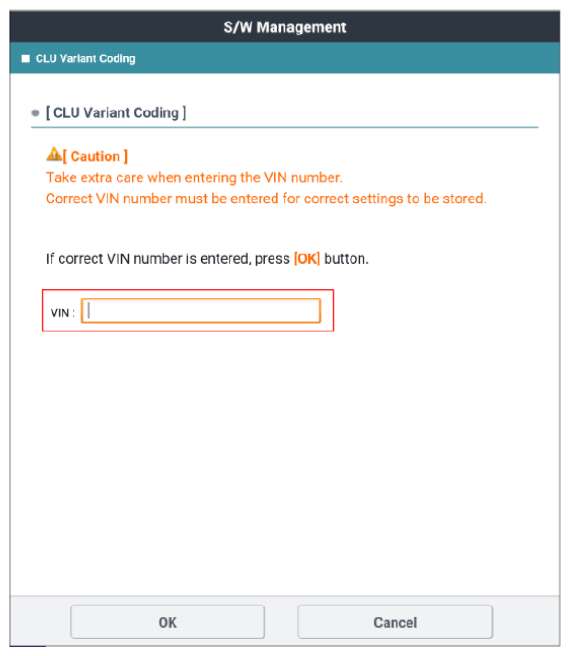

G13414074Courtesy of KIA MOTORS AMERICA, INC.
G13414075Courtesy of KIA MOTORS AMERICA, INC.
