Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS/GDS to Data Link Connector (DLC).
  2. Perform "VEHICLE S/W MANAGEMENT" of concerned component with KDS/GDS.
 Fig.1 to 2
Fig.3 to 5
CAUTION: Using KDS/GDS performs the "Vehicle S/W Management" → "CLU Variant Coding" item.
The DTC is erased when programming is properly performed.

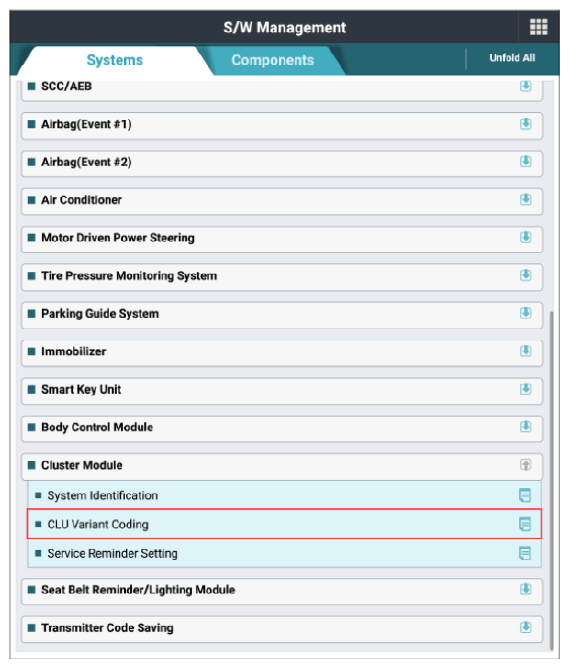

G13414010Courtesy of KIA MOTORS AMERICA, INC.

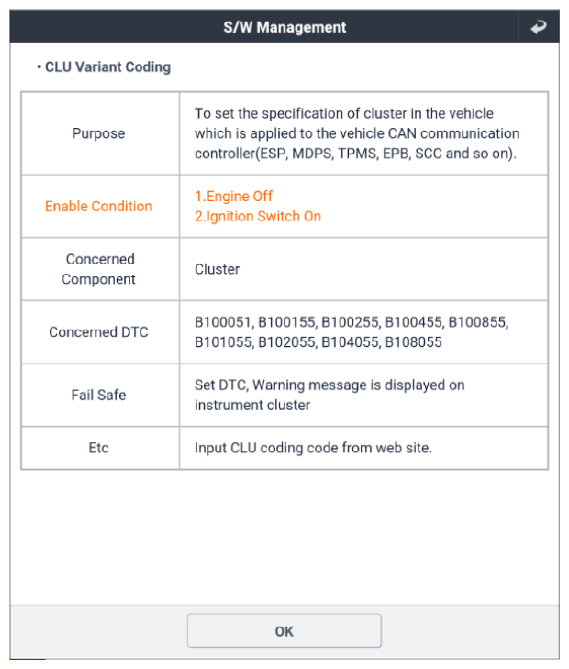

G13414011Courtesy of KIA MOTORS AMERICA, INC.

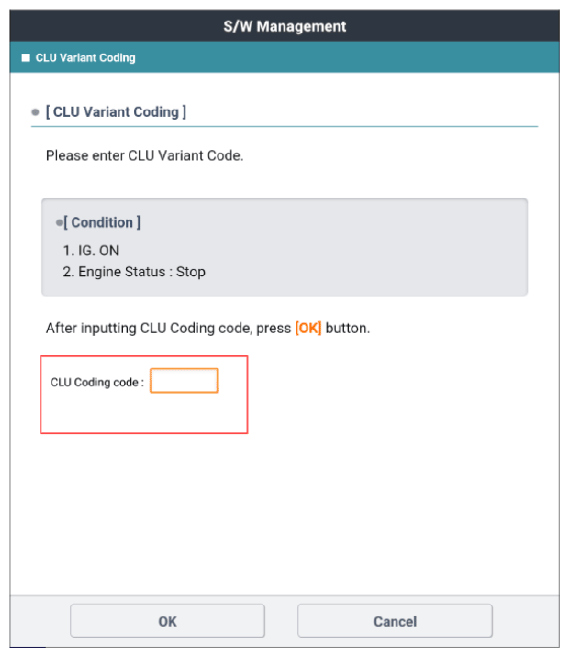

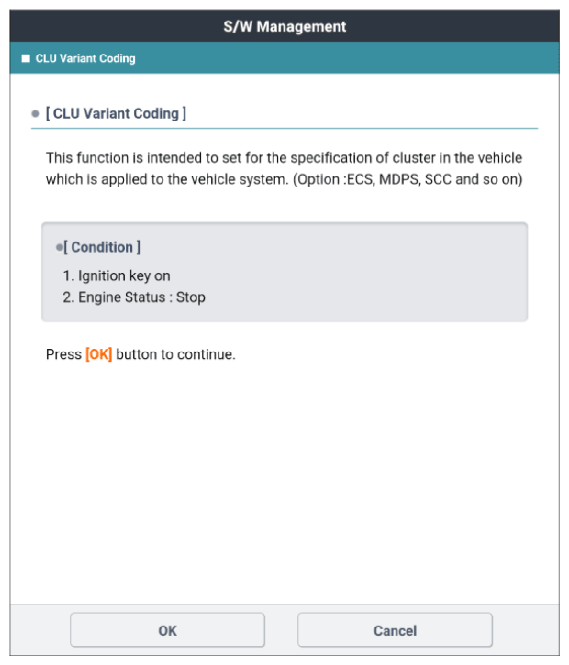

G13414012Courtesy of KIA MOTORS AMERICA, INC.

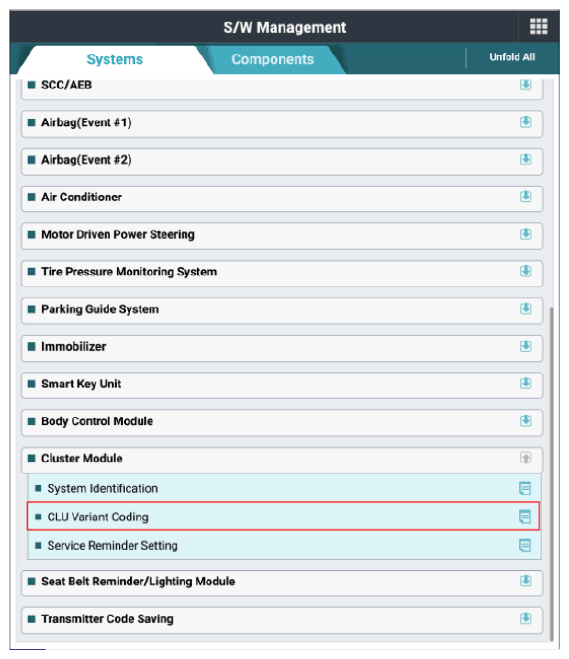

G13414013Courtesy of KIA MOTORS AMERICA, INC.
G13414014Courtesy of KIA MOTORS AMERICA, INC.
G13414015Courtesy of KIA MOTORS AMERICA, INC.

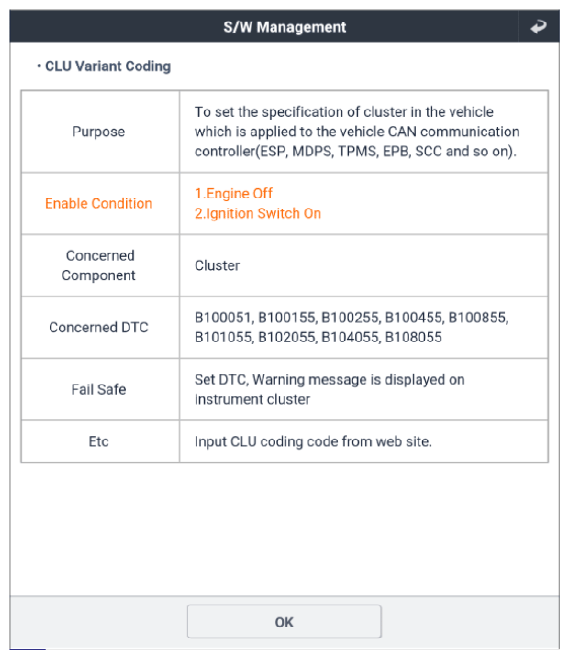

G13414016Courtesy of KIA MOTORS AMERICA, INC.

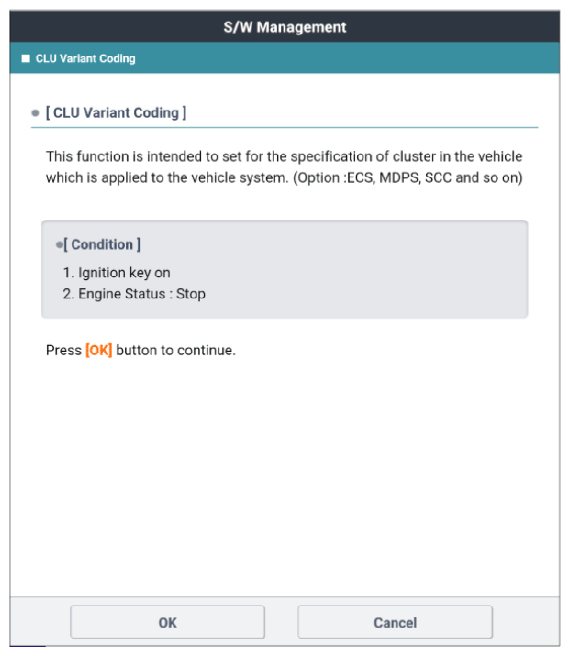

G13414017Courtesy of KIA MOTORS AMERICA, INC.

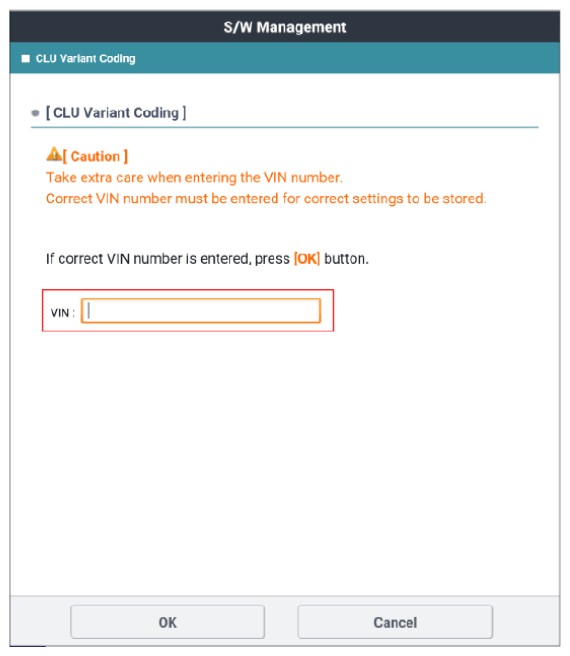

G13414018Courtesy of KIA MOTORS AMERICA, INC.
G13414019Courtesy of KIA MOTORS AMERICA, INC.
