Repair Procedures: Replacement

WARNING: This page is about a different car, the 2022 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the battery (-) terminal.
  2. Remove the crash pad garnish [RH].

    (Refer to Body - "CRASH PAD GARNISH ")

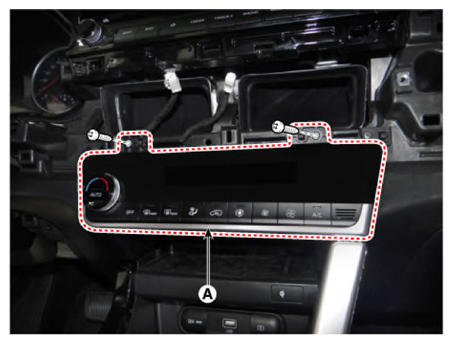

  3. After loosening the mounting screws, remove the A/C & heater controller unit (A).
    G13482328Courtesy of KIA MOTORS AMERICA, INC.

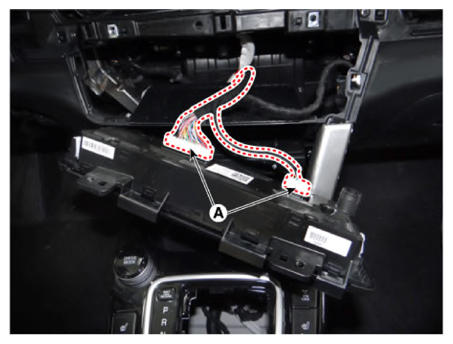

  4. Disconnect the A/C & heater controller connectors (A).
    G13482329Courtesy of KIA MOTORS AMERICA, INC.
  5. To install, reverse the removal procedure.
    NOTE:
    • Reassemble the connector correctly.
    • Replace any damaged clips.
