Monitor DTC Status
WARNING: This page is about a different car, the 2023 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.
| Inspection Condition | Inspection Procedure | Reference |
|---|---|---|
|
|

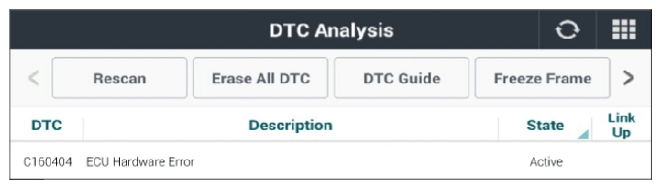

Fig.1 |
Active Fault
- Fault is intermittent caused by poor contact in the sensor's and/or control module's connector or was repaired and control module's memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
- Repair or replace as necessary and then go to "SYSTEM INSPECTION " procedure.
- If the DTC is erased, check for proper operation. If problem is corrected, replace SCC/FCA and then go to "SYSTEM INSPECTION " procedure.
* In a case of replacing SCC/FCA module, require to set the "Variant Coding" by KDS/GDS.
History/Pending Fault
- Fault is intermittent caused by poor contact in the sensor's and/or control module's connector or was repaired and control module's memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
- Repair or replace as necessary and then go to "VERIFICATION OF REPAIR " procedure.
