Repair Procedures: Inspection

1. Connect the KDS to the Data Link Connector (DLC).
2. Turn the ignition switch ON.
3. Check the KDS service data of the sensor.

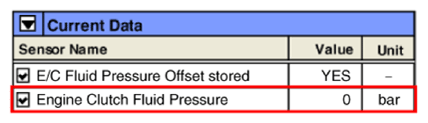

• EV Mode (Engine clutch not operating)

  Clutch Oil Pressure:  approx. 0 bar (0 kpa, 0 kgf/cm² , 0 psi)

  Courtesy of KIA MOTORS AMERICA, INC.

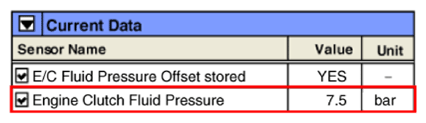

• HEV Mode (Engine clutch operating)

Clutch Oil Pressure:  above 0 bar (0 kpa, 0 kgf/cm² , 0 psi)
