Section 8 (Fuel Delivery System (HEV))
>>
Fuel Pump Control Module (FPCM)
>>
Schematic Diagrams
>>

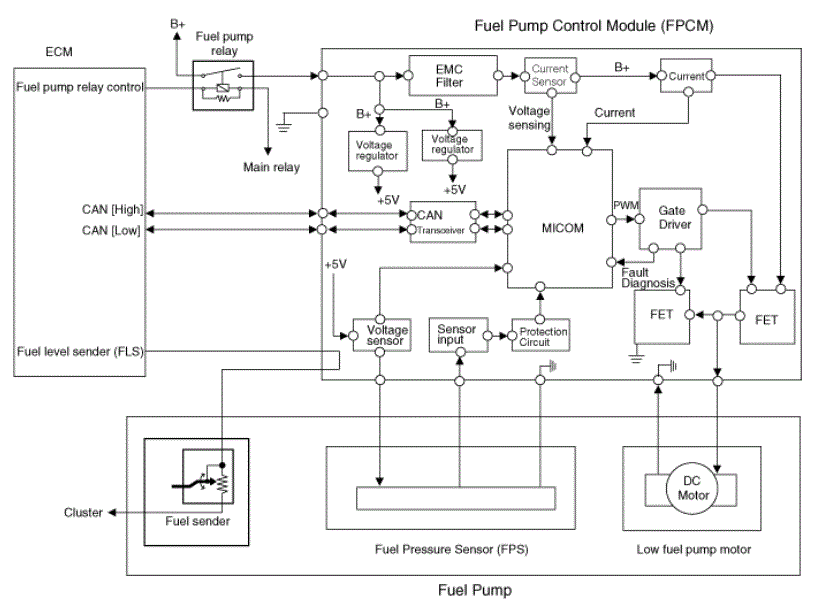

Circuit Diagram
Circuit Diagram
WARNING:
This page is about a different variant/trim than selected.
Courtesy of KIA MOTORS AMERICA, INC.
