Section 56 (Hybrid Motor Control System (HEV))
>>
Resolver Sensor
>>

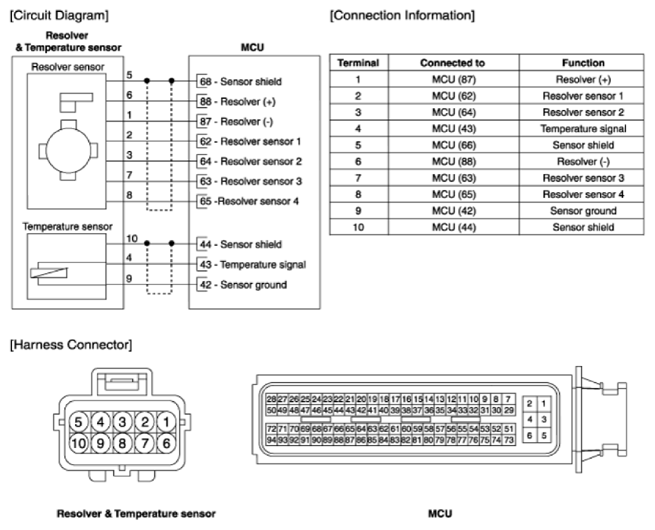

Circuit Diagram
>>
Resolver sensor (HSG)
Resolver sensor (HSG)
WARNING:
This page is about a different variant/trim than selected.
Courtesy of KIA MOTORS AMERICA, INC.
