Repair Procedures: Inspection

WARNING: This page is about a different variant/trim than selected.
  1. Remove the overhead console lamp assembly then check for continuity between terminals. If the continuity is not as specified, replace the map lamp switch.

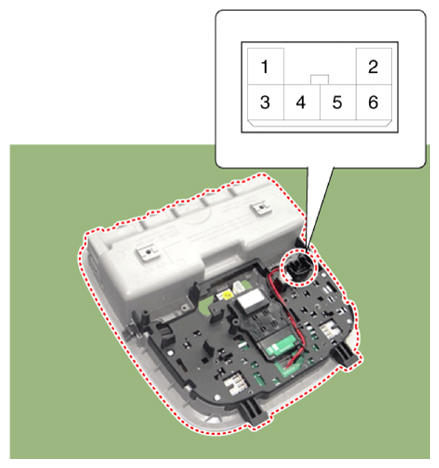

G13390498Courtesy of KIA MOTORS AMERICA, INC.

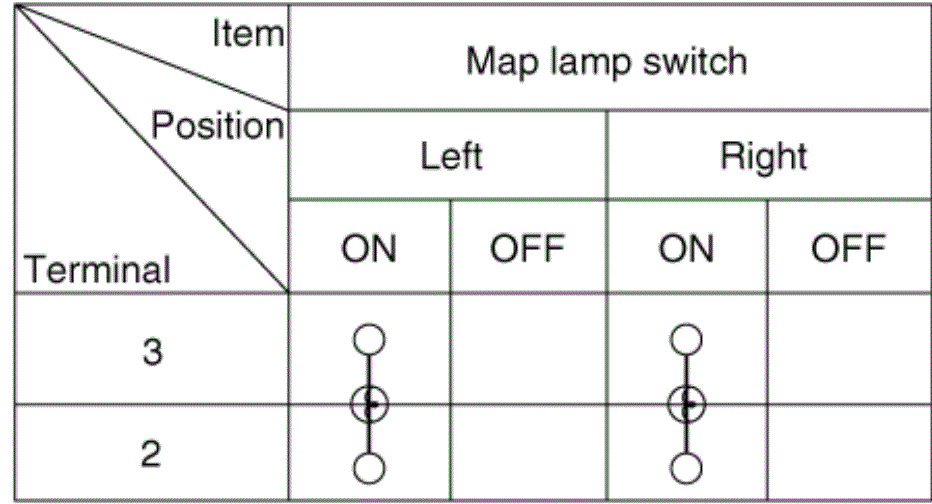

G13390499Courtesy of KIA MOTORS AMERICA, INC.
