Cluster module variant coding

WARNING: This page is about a different variant/trim than selected.
  1. Verify vehicle options and have VIN code in hand.
  2. Perform "CLU Variant Coding" in the "Vehicle S/W Management" with KDS.
  3. Check for DTCs in the system.

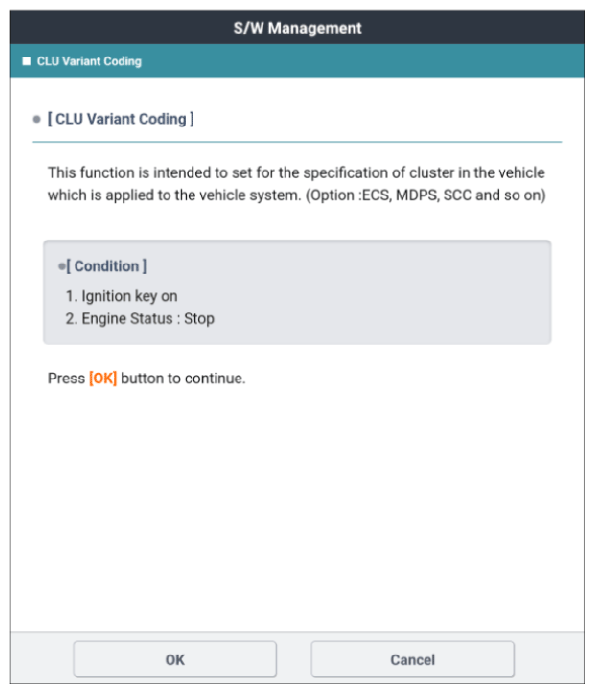

    G13394369Courtesy of KIA MOTORS AMERICA, INC.

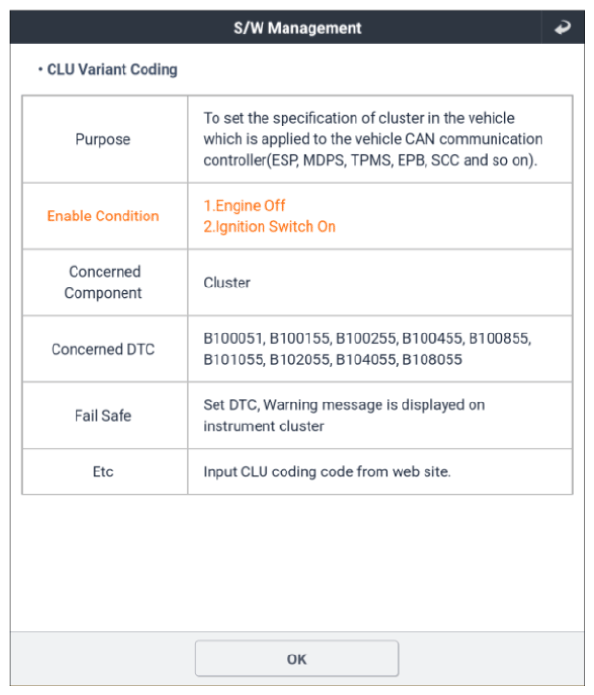

    G13394370Courtesy of KIA MOTORS AMERICA, INC.

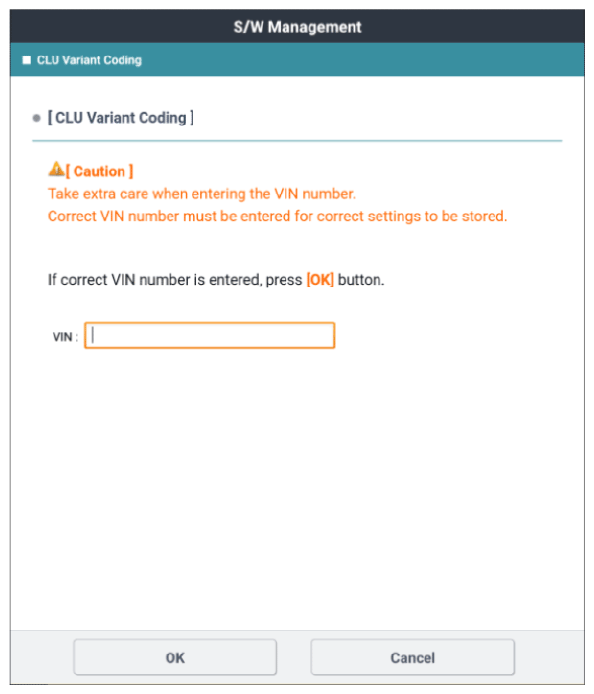

    G13394371Courtesy of KIA MOTORS AMERICA, INC.
    G13394372Courtesy of KIA MOTORS AMERICA, INC.

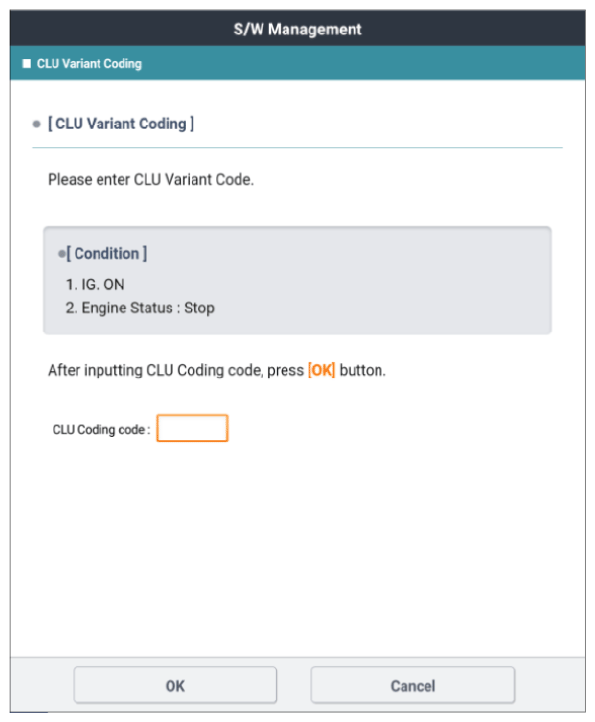

    G13394373Courtesy of KIA MOTORS AMERICA, INC.

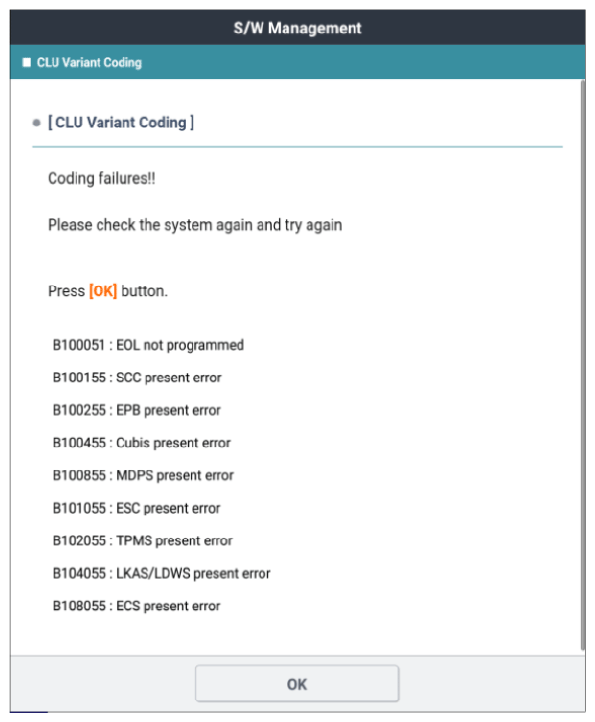

    G13394374Courtesy of KIA MOTORS AMERICA, INC.
  4. Is the DTCs stored in the system as a present?

    YES

    • Replace cluster module and perform "CLU Variant Coding" procedure in the "Vehicle S/W Management" with KDS again, and then, go to "VERIFICATION OF VEHICLE REPAIR " procedure.
