Repair Procedures: Inspection
WARNING: This page is about a different variant/trim than selected.

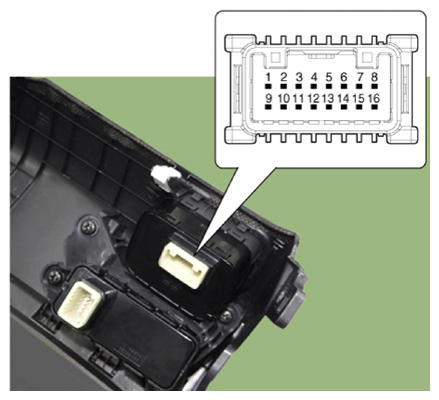

- Disconnect the BSD switch connector from the crash pad lower switch assembly.
 Courtesy of KIA MOTORS AMERICA, INC.
|

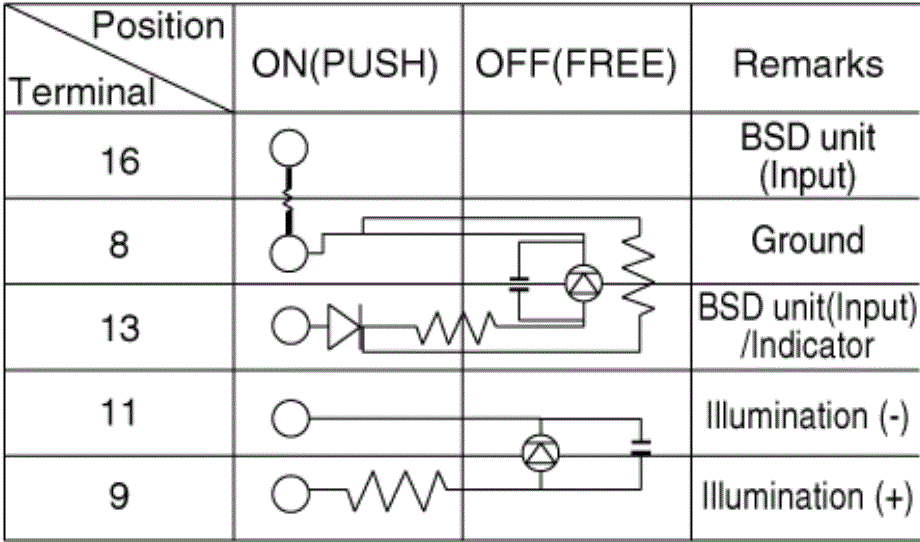

- Operate the BSD switch, then check for continuity between terminals and BSD switch connector.
 Courtesy of KIA MOTORS AMERICA, INC.
|
