Circuit Diagram

WARNING: This page is about a different variant/trim than selected.

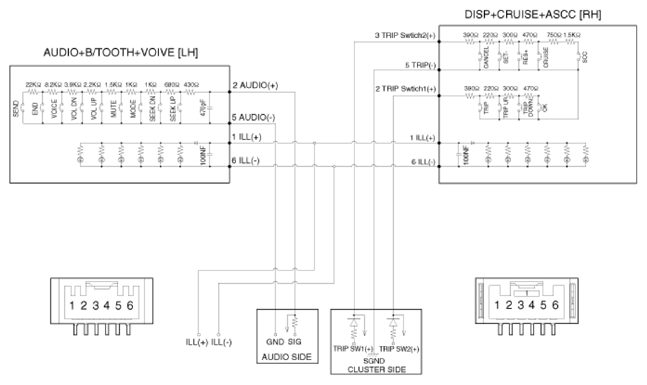

G13387822Courtesy of KIA MOTORS AMERICA, INC.

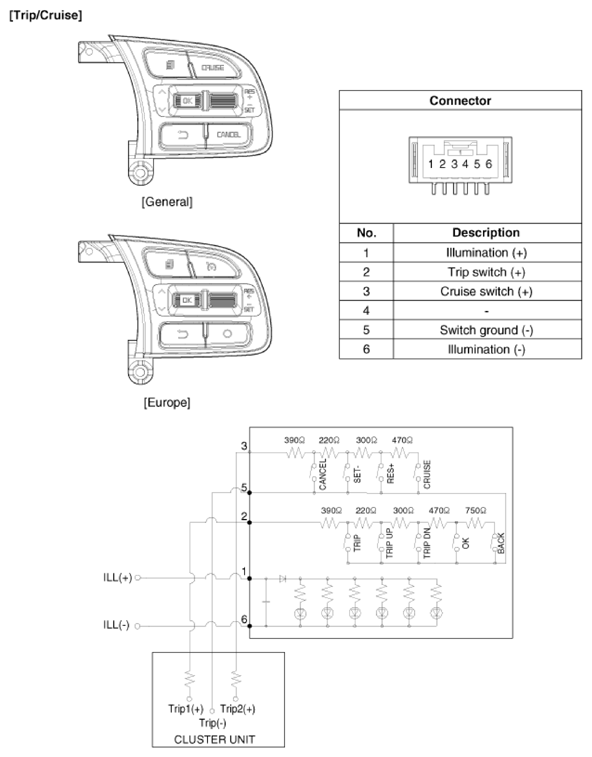

G13387823Courtesy of KIA MOTORS AMERICA, INC.

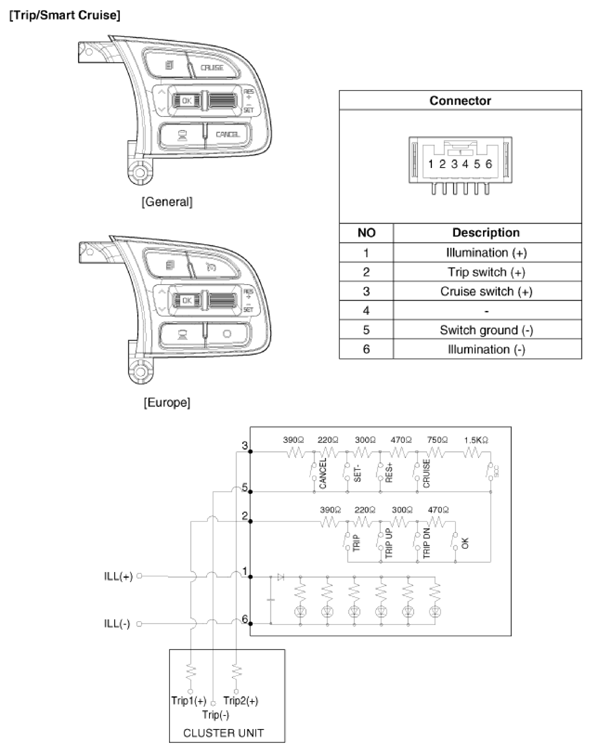

G13387824Courtesy of KIA MOTORS AMERICA, INC.

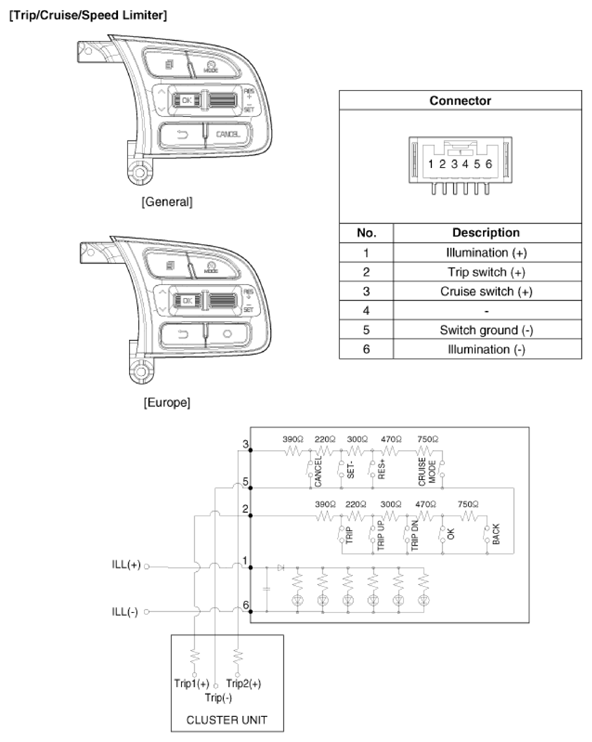

G13387825Courtesy of KIA MOTORS AMERICA, INC.

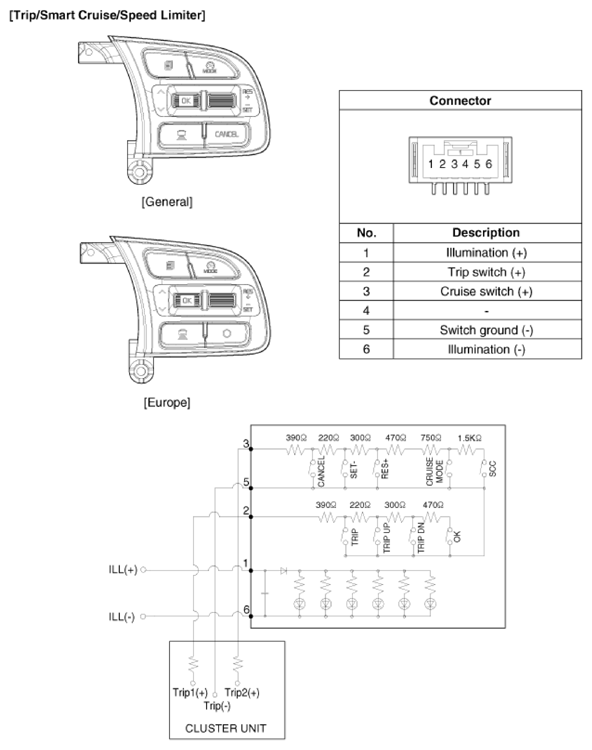

G13387826Courtesy of KIA MOTORS AMERICA, INC.
