[Assist Power Window Module (ADM, IMS)]

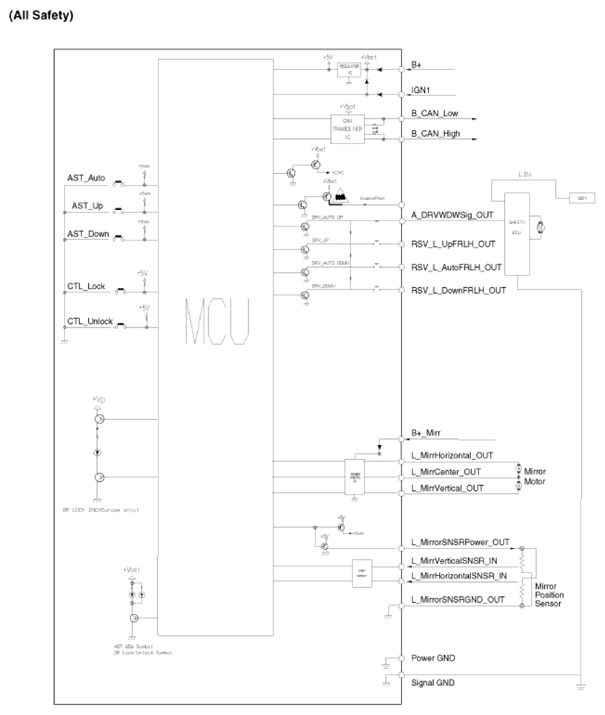

G13364339Courtesy of KIA MOTORS AMERICA, INC.

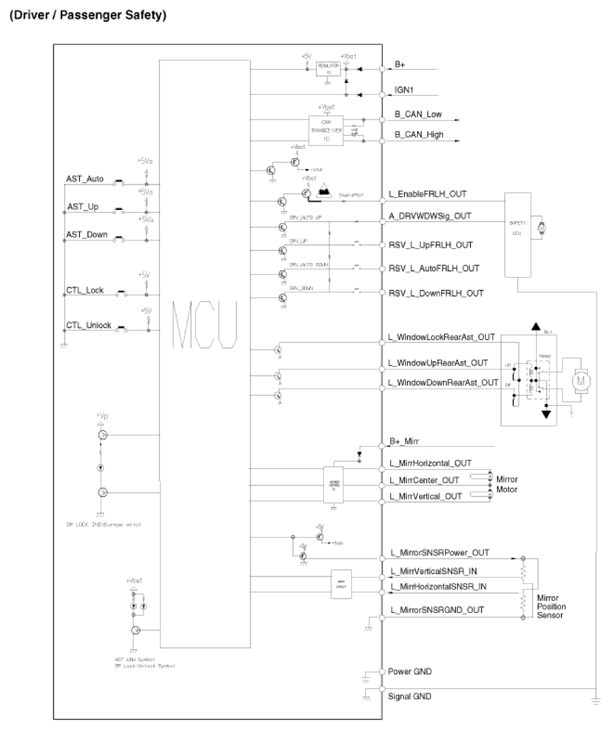

G13364340Courtesy of KIA MOTORS AMERICA, INC.

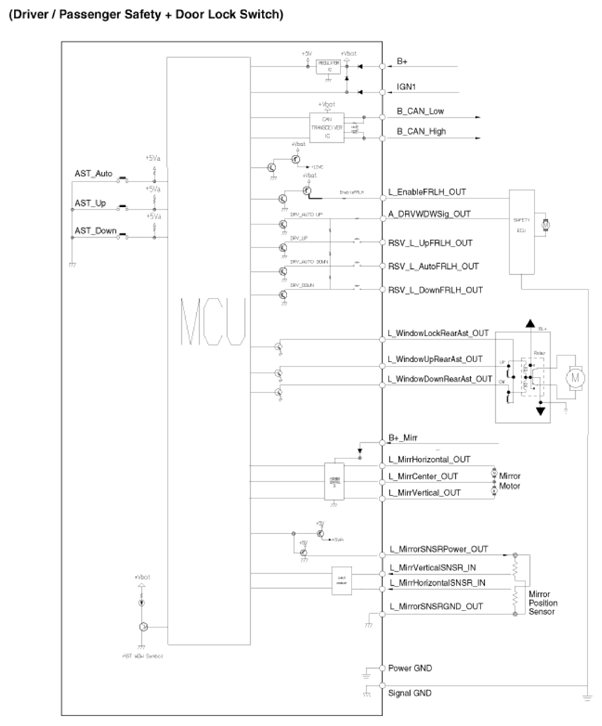

G13364341Courtesy of KIA MOTORS AMERICA, INC.
