Monitor DTC Status

  1. Connect KDS to Data Link Connector(DLC).
  2. Ignition "ON".

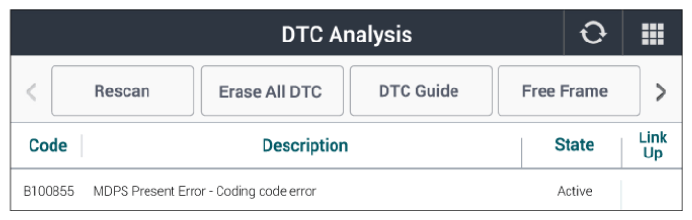

  3. Monitor "Diagnostic Trouble Codes(DTC)" with KDS.
    G13368088Courtesy of KIA MOTORS AMERICA, INC.
  4. Is DTC status displayed as Present?

    YES

    1. Go to "MONITOR KDS DATA " procedure.

    NO

    1. Go to "VERIFICATION OF VEHICLE REPAIR " procedure.
