Home >> Kia >> 2020 >> Optima Hybrid EX >> Repair and Diagnosis (Single Page) >> Accessories & Equipment >> Cruise Control Systems >> Smart Cruise Control Diagnosis (HEV) >> DTC C1702-55: Variant Coding Error >> System Inspection >> Variant Coding

Variant Coding

  1. Ignition "ON"
  2. Perform "Vehicle S/W Management" → "SCC (AEB) Variant Coding" with KDS.
  3. Select the "Variant Coding" and set the proper option.
  4. Check for DTCs in the system.

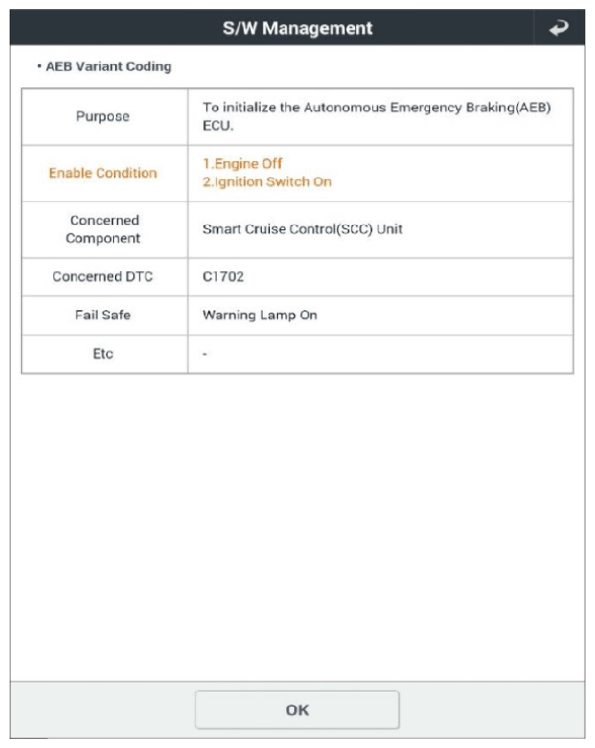

G13397392Courtesy of KIA MOTORS AMERICA, INC.

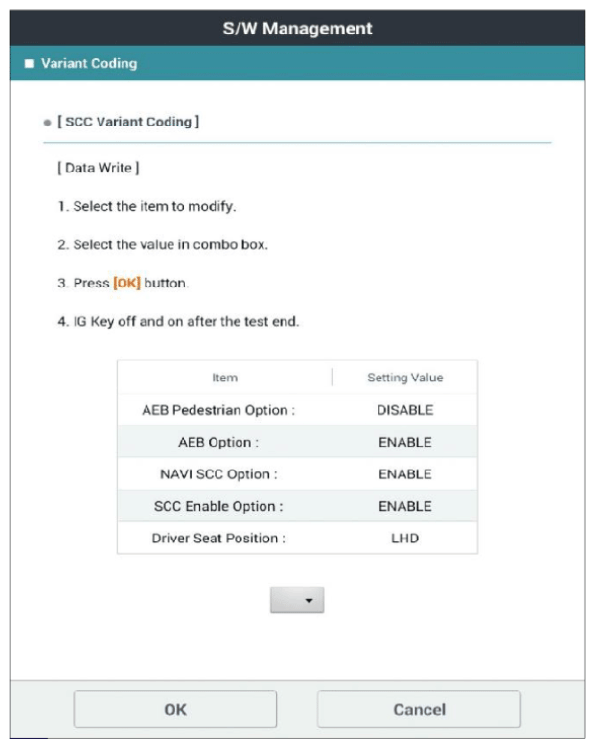

G13397393Courtesy of KIA MOTORS AMERICA, INC.

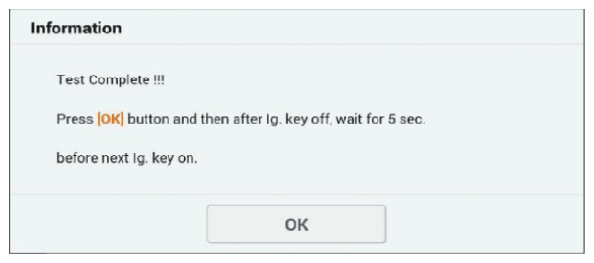

G13397394Courtesy of KIA MOTORS AMERICA, INC.
