Repair Procedures: Replacement

WARNING: This page is about a different car, the 2020 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.

Remove the front door outside handle.
(Refer to Front Door - "FRONT DOOR OUTSIDE HANDLE ")

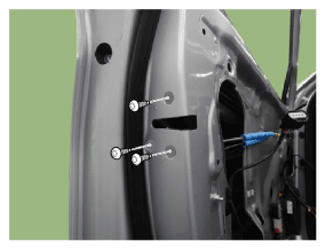

Loosen the front door latch mounting screws.
Tightening Torque:

6.9 - 10.8 N.m (0.7 - 1.1 kgf.m, 5.0 - 8.0 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

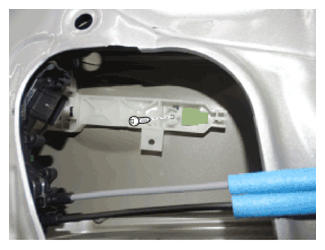

Loosen the front outside handle base mounting screw.
Tightening Torque:

3.9 - 7.8 N.m (0.4 - 0.8 kgf.m, 2.9 - 5.8 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

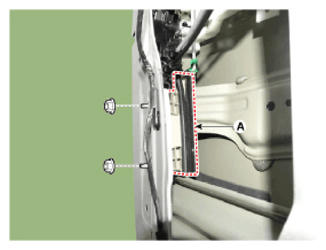

After loosening the mounting nuts, remove the front door channel (A).
Tightening Torque:

3.9 - 5.9 N.m (0.4 - 0.6 kgf.m, 2.9 - 4.3 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

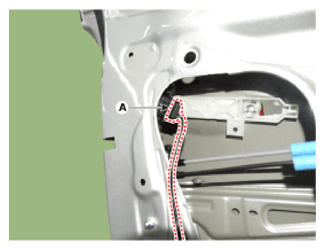

Disconnect the front door latch connector (A).

Courtesy of HYUNDAI MOTOR AMERICA

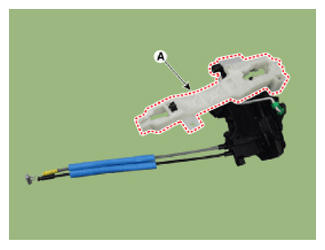

Remove the front door outside handle base bracket (A).

Courtesy of HYUNDAI MOTOR AMERICA

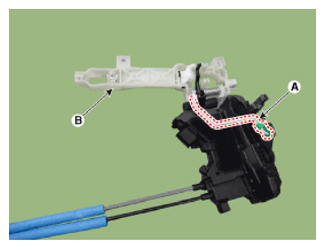

After loosening the front door outside handle rod (A), remove the front door outside handle base (B).

Courtesy of HYUNDAI MOTOR AMERICA
To install, reverse removal procedure.
Information
- Make sure the connector is connected properly.
- Make sure the door locks/unlocks and opens/closes properly.
- Replace any damaged clips (or pin-type retainers).
