Washer Fluid Level Sensor

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal.
  2. Remove the engine room under cover.

    G 1.6 T-GDI  (Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")

    G 2.0 Nu MPI  (Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")

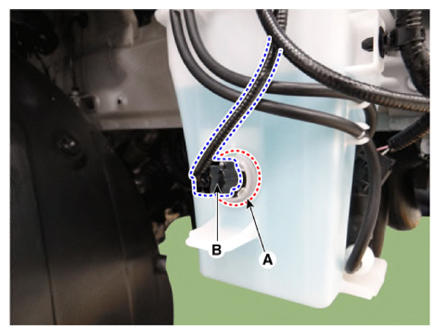

  3. Remove the washer fluid level sensor (A) after disconnecting the connector (B).
    G13482139Courtesy of KIA MOTORS AMERICA, INC.
