Repair Procedures: Inspection

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.
  1. Check the bushing for wear and deterioration.
  2. Check the lower arm for deformation.
  3. Check the all bolts and nuts.
  4. Make sure that the ball stud rotates smoothly.

    If there is an abnormality, replace the ball joint.

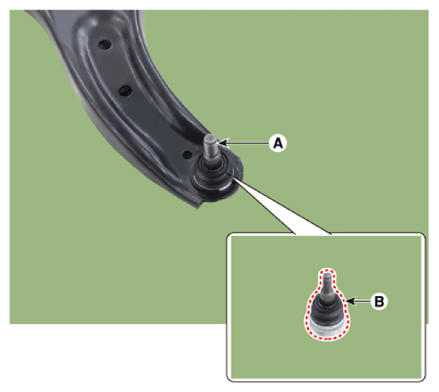

  5. Check the ball stud (A) axial free play, In case of any free play exist, replace the ball joint (B).
    G13481274Courtesy of KIA MOTORS AMERICA, INC.
