Trunk Lock Module Inspection

  1. Remove the trunk lid trim.

    (Refer to "TRUNK LID TRIM ")

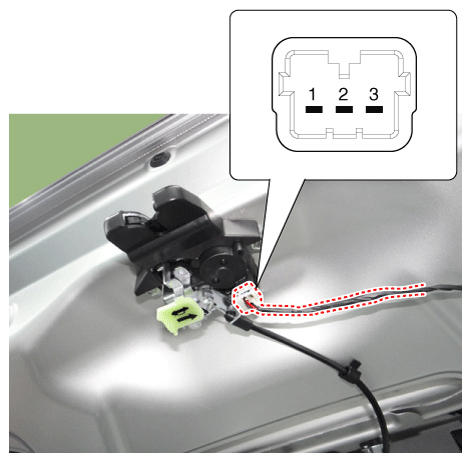

  2. Disconnect the connector from the actuator
    G12921125Courtesy of KIA MOTORS AMERICA, INC.
  3. Check actuator operation by connecting power and ground according to the table. To prevent damage to the actuator, apply battery voltage only momentarily.
G12921126Courtesy of KIA MOTORS AMERICA, INC.
G12921127Courtesy of KIA MOTORS AMERICA, INC.
