Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Figures below

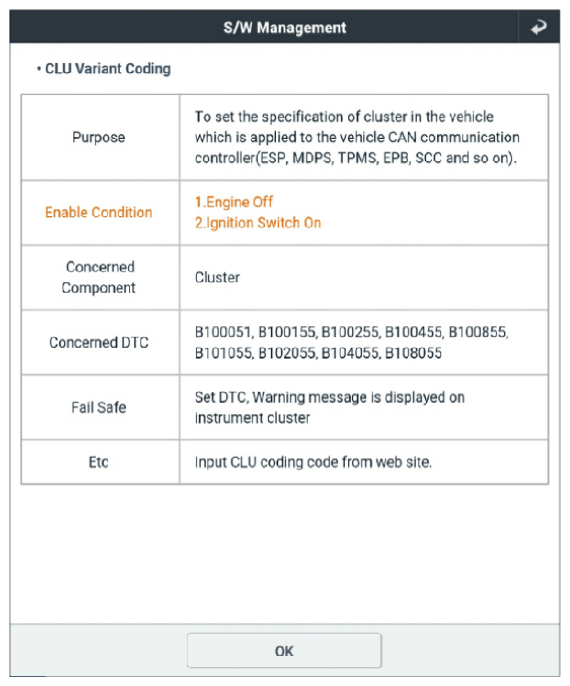

G13384640Courtesy of KIA MOTORS AMERICA, INC.

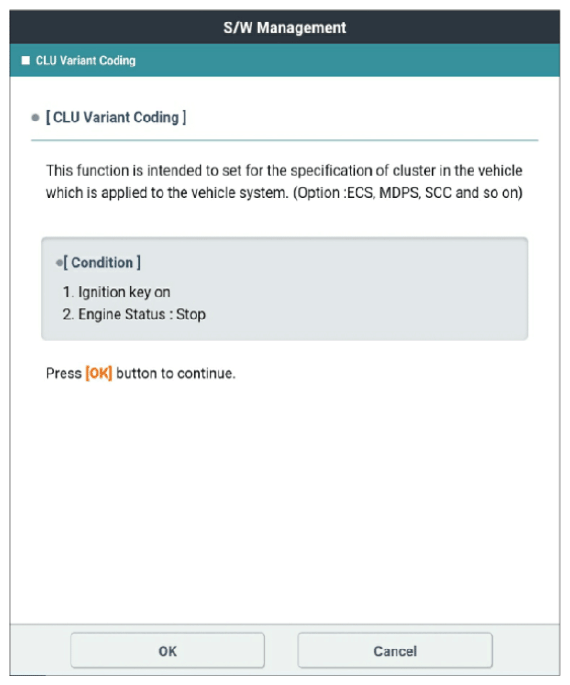

G13384641Courtesy of KIA MOTORS AMERICA, INC.

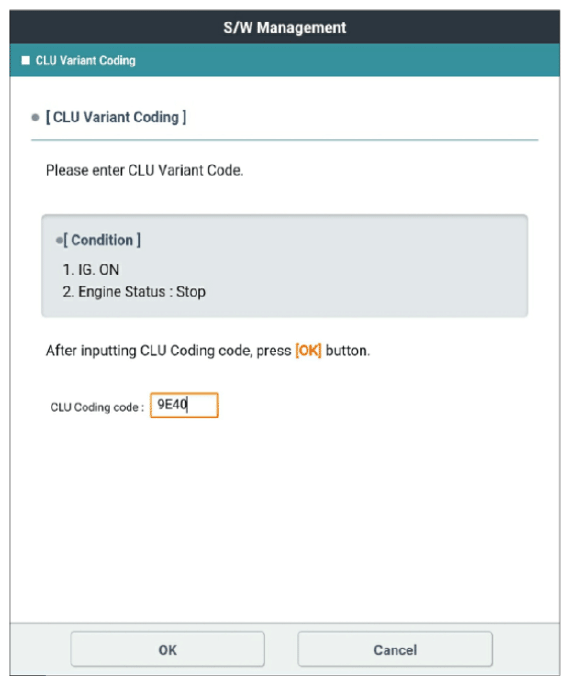

G13384642Courtesy of KIA MOTORS AMERICA, INC.

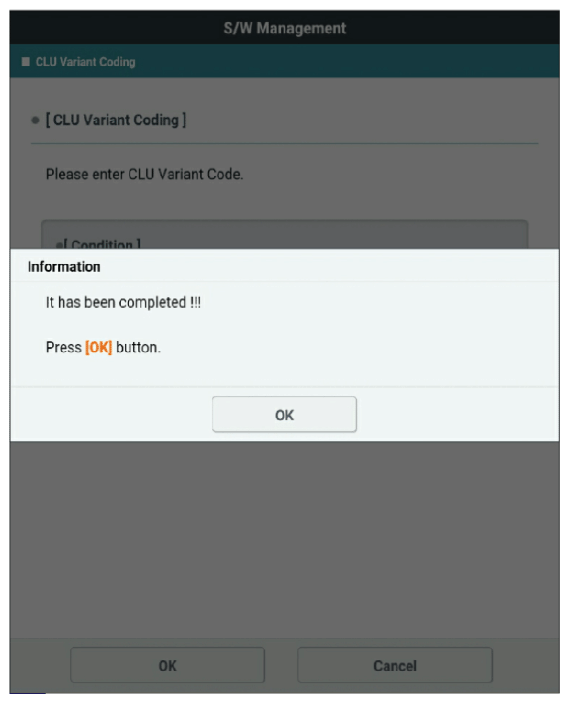

G13384643Courtesy of KIA MOTORS AMERICA, INC.

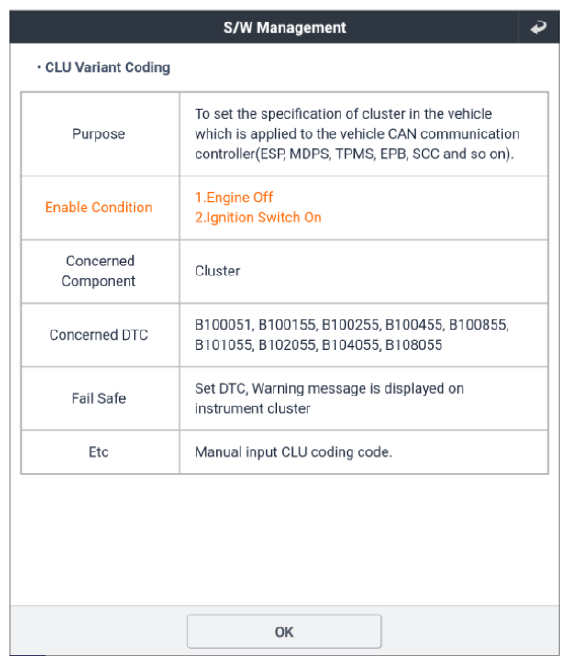

G13384644Courtesy of KIA MOTORS AMERICA, INC.

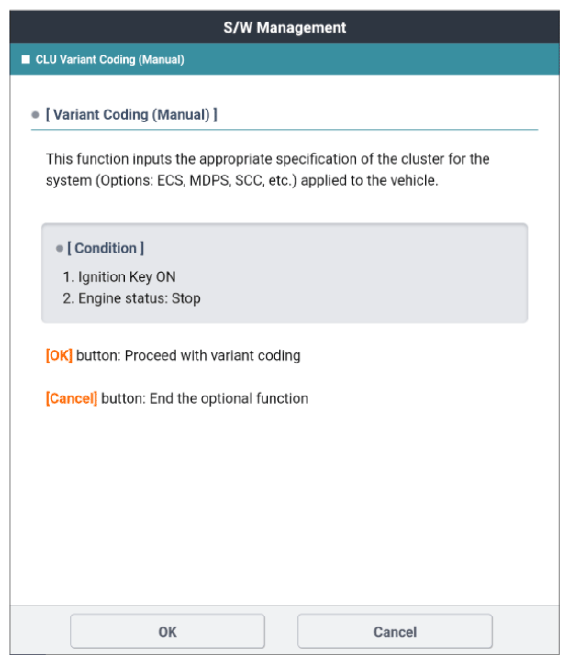

G13384645Courtesy of KIA MOTORS AMERICA, INC.

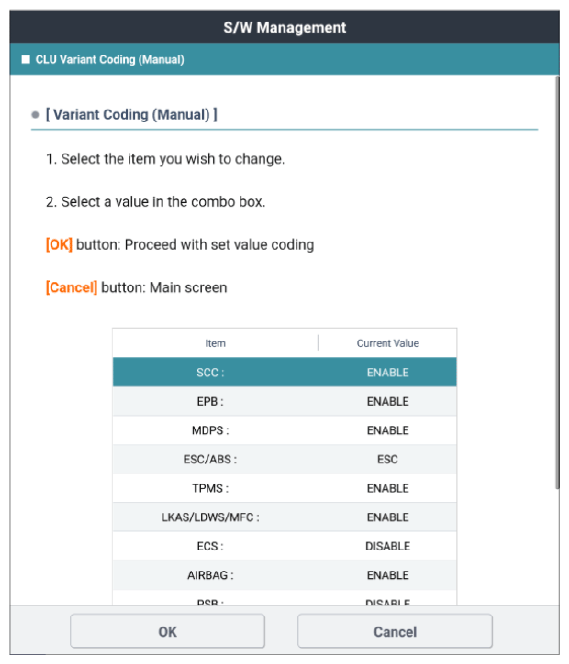

G13384646Courtesy of KIA MOTORS AMERICA, INC.

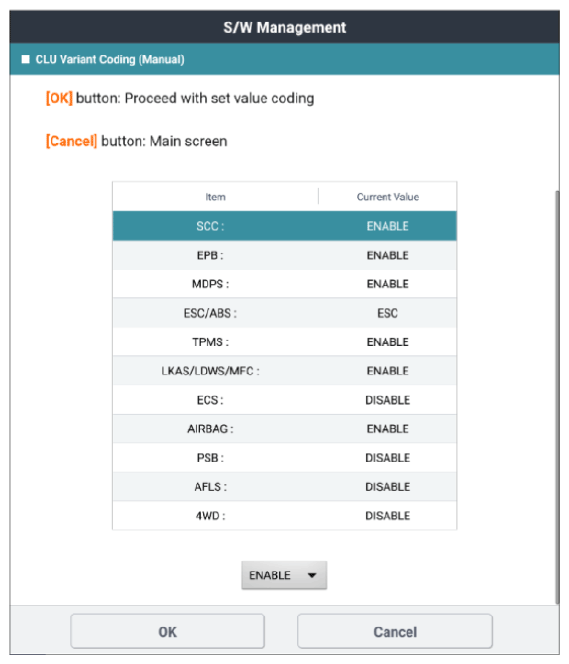

G13384647Courtesy of KIA MOTORS AMERICA, INC.

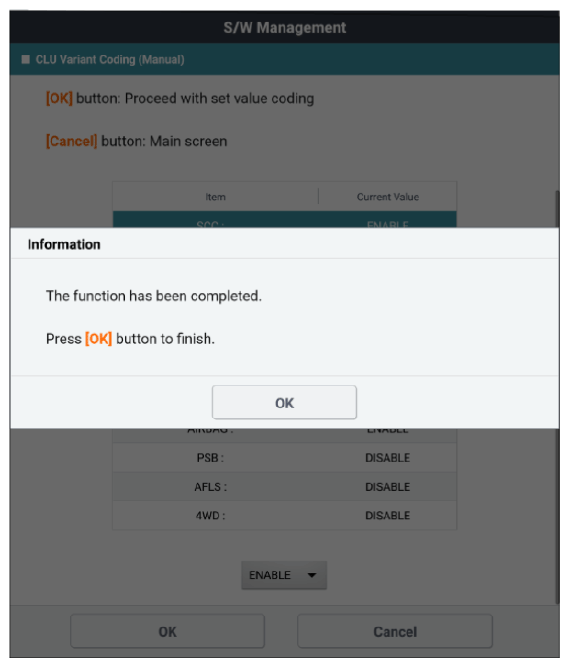

G13384648Courtesy of KIA MOTORS AMERICA, INC.
