Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to Data Link Connector (DLC).
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Fig. 1 to 8

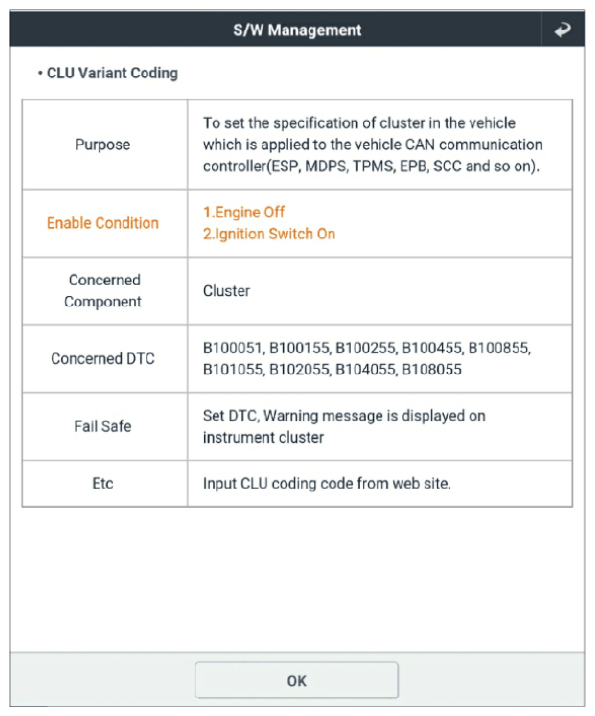

G13301999Courtesy of KIA MOTORS AMERICA, INC.

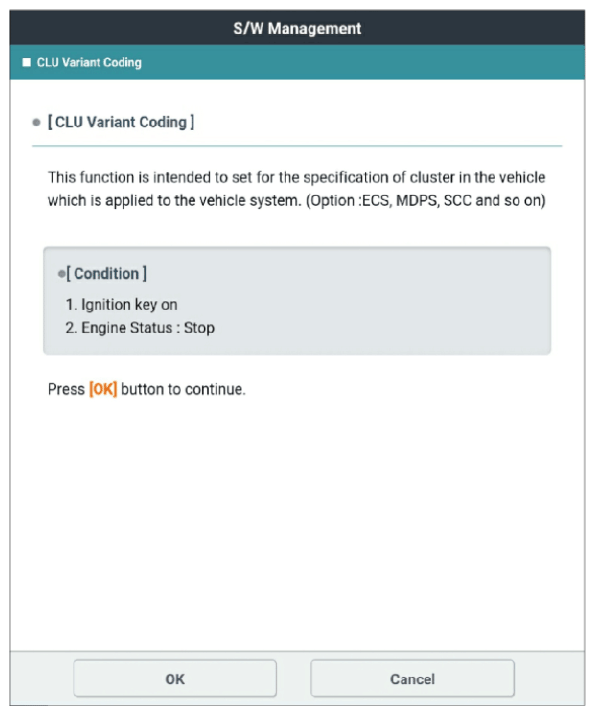

G13302000Courtesy of KIA MOTORS AMERICA, INC.

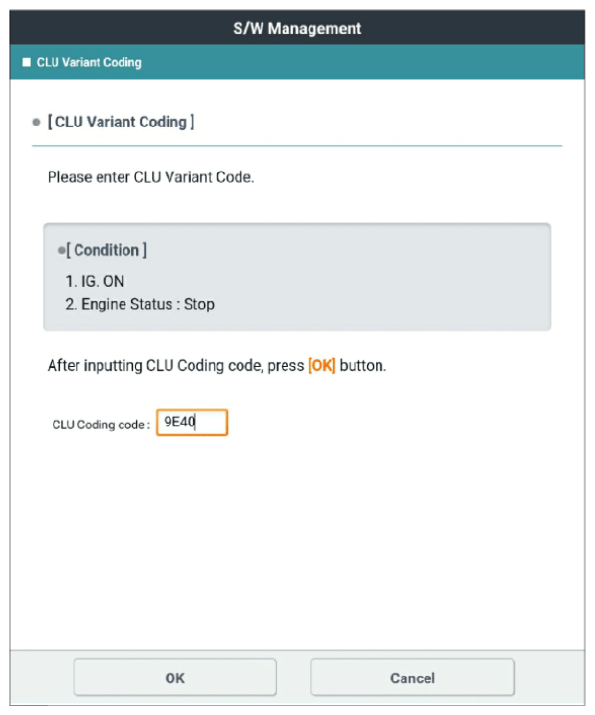

G13302001Courtesy of KIA MOTORS AMERICA, INC.

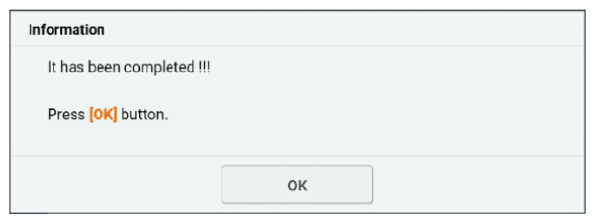

G13302002Courtesy of KIA MOTORS AMERICA, INC.

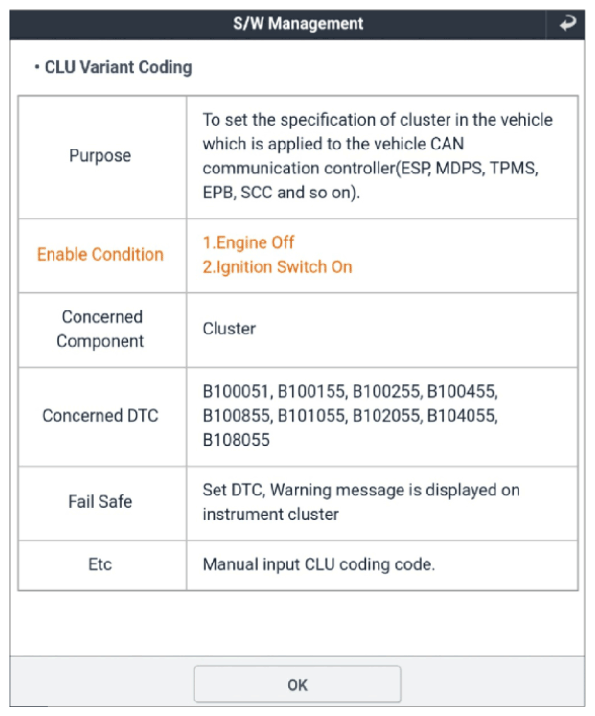

G13302003Courtesy of KIA MOTORS AMERICA, INC.

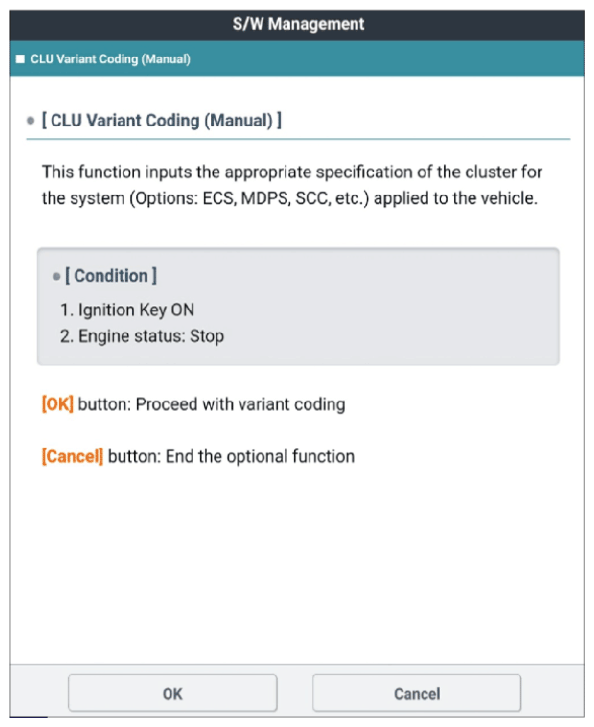

G13302004Courtesy of KIA MOTORS AMERICA, INC.

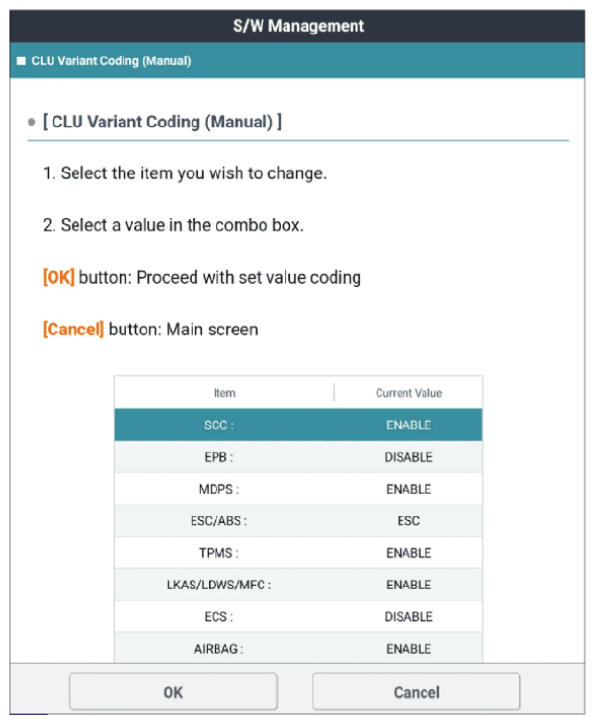

G13302005Courtesy of KIA MOTORS AMERICA, INC.

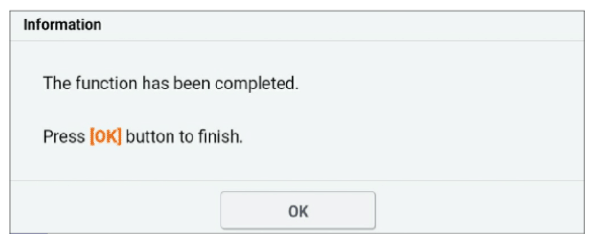

G13302006Courtesy of KIA MOTORS AMERICA, INC.
