Removal And Installation

WARNING: This page is about a different variant/trim than selected.

Disconnect the battery negative terminal.
Remove the engine room under cover.
(Refer to Engine and Transaxle Assembly - "ENGINE ROOM UNDER COVER ")
Drain the engine coolant.
(Refer to Cooling System - "COOLANT ")
Remove the air cleaner assembly.
(Refer to Intake and Exhaust System - "AIR CLEANER ")
Remove the cooling fan.
(Refer to Cooling System - "COOLING FAN ")

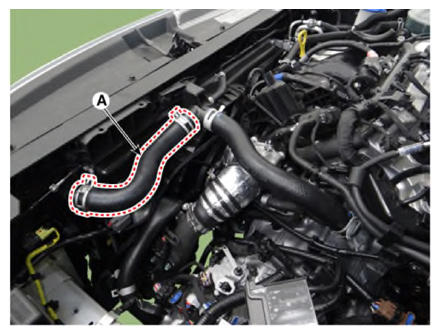

Remove the radiator upper hose (A).

Courtesy of KIA MOTORS AMERICA, INC.

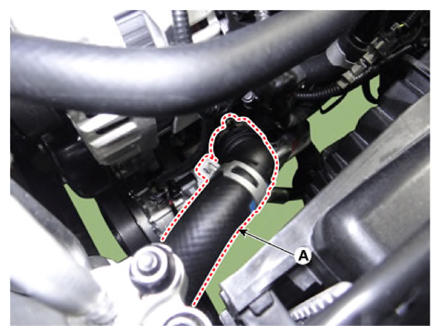

Remove the radiator lower hose (A).

Courtesy of KIA MOTORS AMERICA, INC.
Remove the front bumper assembly.
(Refer to Body (Interior and Exterior) - "FRONT BUMPER ASSEMBLY ")
Remove the intercooler.
(Refer to Intake and Exhaust System - "INTERCOOLER ")
Remove the hood latch.
(Refer to Body (Interior and Exterior) - "HOOD LATCH ")

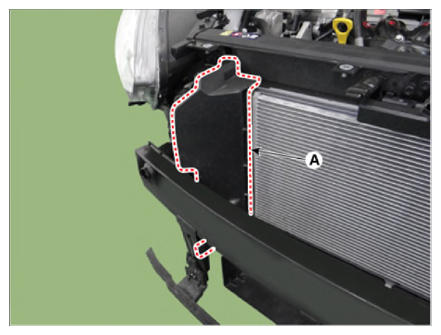

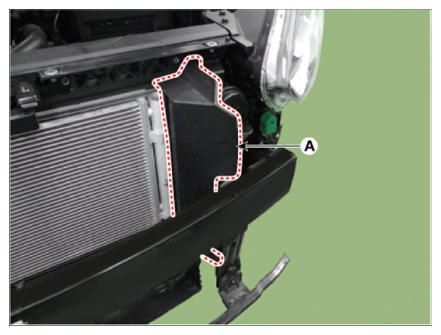

Remove the air guide (A).
Tightening torque:

3.9 - 5.9 N.m (0.4 - 0.6 kgf.m, 2.9 - 4.3 lb.ft, 35.4 - 53.1 lb.in)

[RH]

Courtesy of KIA MOTORS AMERICA, INC.

[LH]

Courtesy of KIA MOTORS AMERICA, INC.

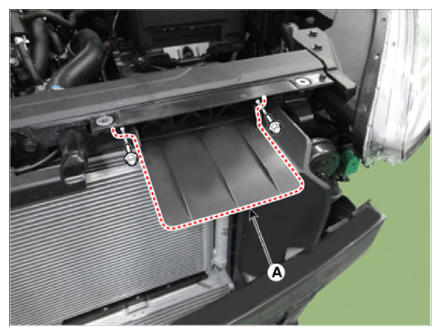

Remove the air extension (A).
Tightening torque:

3.9 - 5.9 N.m (0.4 - 0.6 kgf.m, 2.9 - 4.3 lb.ft, 35.4 - 53.1 lb.in)

Courtesy of KIA MOTORS AMERICA, INC.

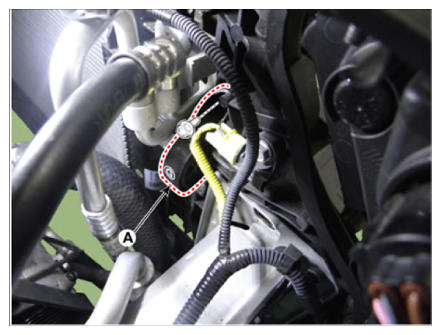

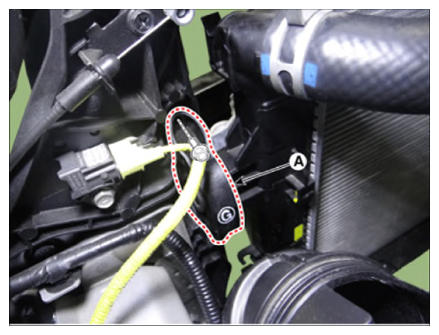

Remove the radiator upper mounting bracket (A).
Tightening torque:

7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb.ft)

[RH]

Courtesy of KIA MOTORS AMERICA, INC.

[LH]

Courtesy of KIA MOTORS AMERICA, INC.

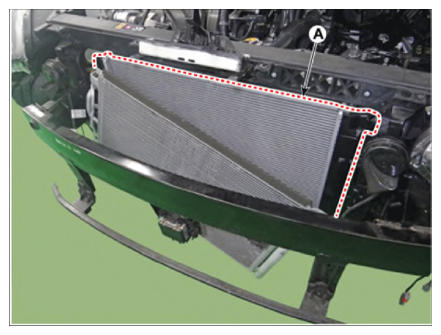

Remove the radiator (A) from the condenser.

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
Fill the radiator with coolant.
(Refer to Cooling System - "COOLANT ")
Start engine and check for leaks.
