Monitor DTC Status

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Monitor "Diagnostic Trouble Codes (DTC)" with KDS.

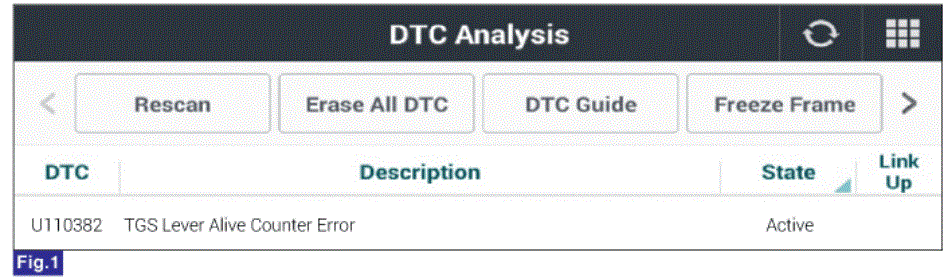

 Fig.1
G00598973Courtesy of KIA MOTORS AMERICA, INC.

Active Fault

History/Pending Fault
