Monitor KDS Data

Inspection Condition	Inspection Procedure	Reference
Ignition "ON".	Connect KDS to Data Link Connector (DLC). Engine "ON". Operate vehicle or system in accordance with enable condition in DTC detecting condition. Monitor "Input Speed(PG-A)", "Output Speed(PG-B)", "Shift Lever Switch", "Current Gear", "Vehicle Speed" and "Engine RPM" parameter in "Current Data" with KDS.	Figures 1 to 2 below

G13410815

Courtesy of KIA MOTORS AMERICA, INC.

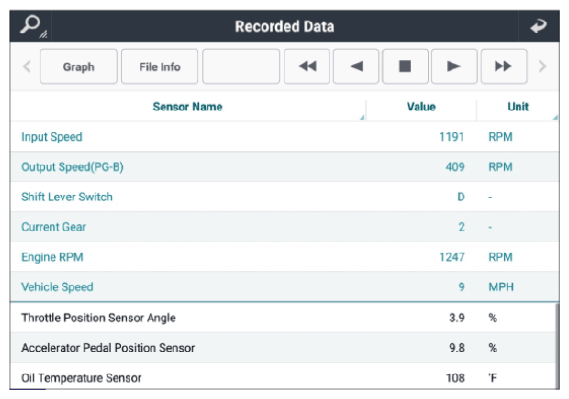

G13410816

Courtesy of KIA MOTORS AMERICA, INC.

Good

Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet. Thoroughly check terminal of battery, all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, or damage.
Repair or replace as necessary and then go to "VERIFICATION OF REPAIR " procedure.

No Good

Go to "WIRING INSPECTION " procedure.
