Component Inspection

Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Condition	Connector	Terminal	Connector	Terminal	Specification
Engine "ON". Gear lever position at "P".	ATM solenoid valve connector	11 (signal)	ATM solenoid valve connector	6 (signal)	Figure 1 below
Engine "ON". Gear lever position at "P".	ATM solenoid valve connector	5 (signal)	Chassis ground	-	Figure 1 below
Engine "ON". Gear lever position at "D".	ATM solenoid valve connector	11 (signal)	ATM solenoid valve connector	6 (signal)	Figure 2 below
Engine "ON". Gear lever position at "D".	ATM solenoid valve connector	5 (signal)	Chassis ground	-	Figure 2 below

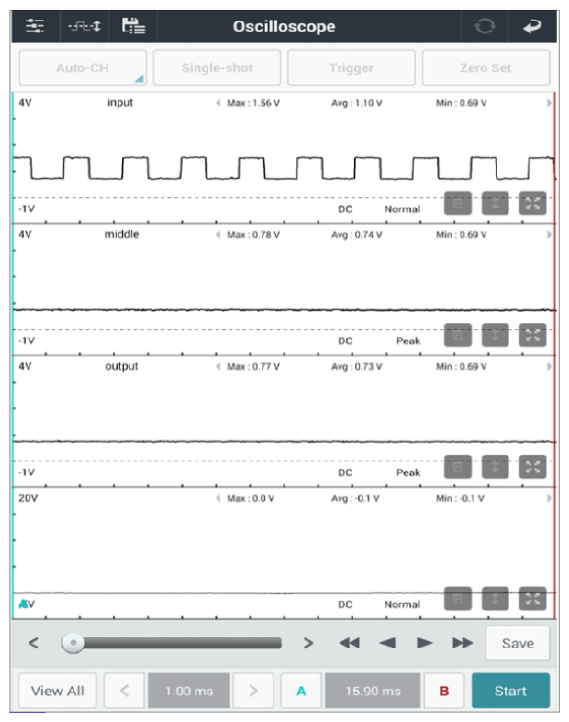

G13410819

Courtesy of KIA MOTORS AMERICA, INC.

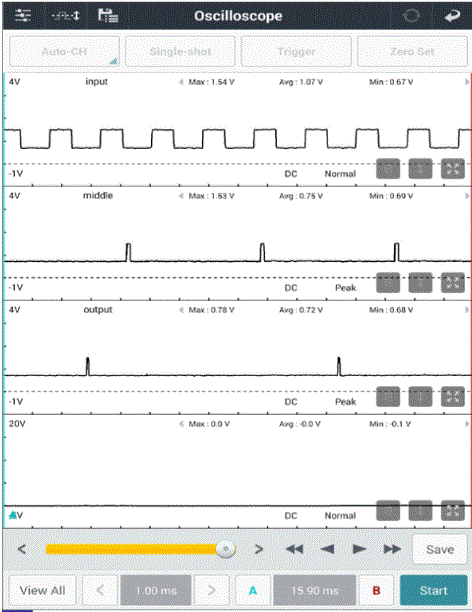

G00599175

Courtesy of KIA MOTORS AMERICA, INC.

Good

Carefully re-do this troubleshooting guide steps.
If problem still occurs, replace TCM and then go to "VERIFICATION OF REPAIR " procedure.

No Good

Carefully re-do this troubleshooting guide steps.
If problem still occurs, replace output speed sensor and then go to "VERIFICATION OF REPAIR " procedure.
