Repair Procedures: Removal

  1. Disconnect the negative battery cable and wait for at least thirty seconds before beginning to work.
  2. Disconnect the front impact sensor connector (A).
    G13404313Courtesy of KIA MOTORS AMERICA, INC.

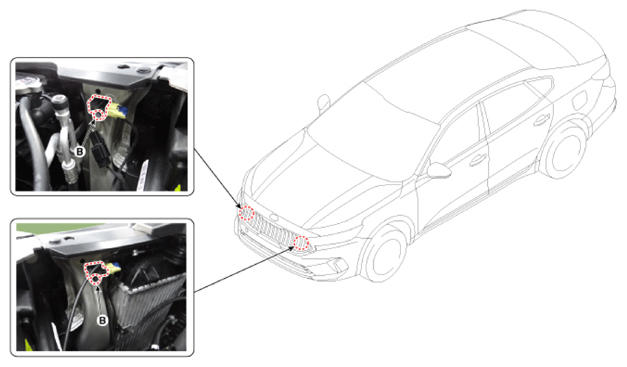

  3. Loosen the front impact sensor by loosening the mounting bolt (B).
    G13404314Courtesy of KIA MOTORS AMERICA, INC.
