Occupant Detection System (ODS) Unit

WARNING: This page is about a different car, the 2020 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery negative terminal.
    NOTE: After disconnecting the negative battery terminal, wait at least 30 seconds.
  2. Remove the passenger seat assembly.

    (Refer to Body - "FRONT SEAT ASSEMBLY ")

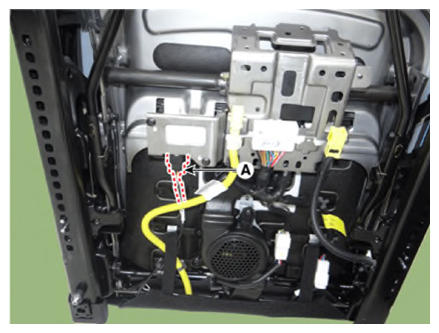

  3. Disconnect the connector (A).
    G13349784Courtesy of KIA MOTORS AMERICA, INC.

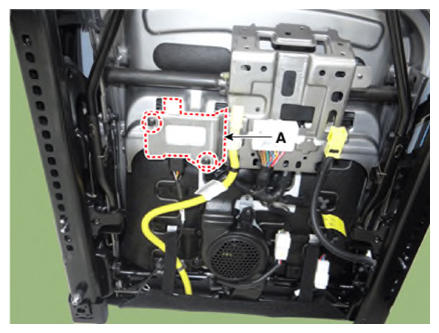

  4. Remove the Occupant Detection System [ODS] (A) after loosening the mounting screws.
G13349785Courtesy of KIA MOTORS AMERICA, INC.
