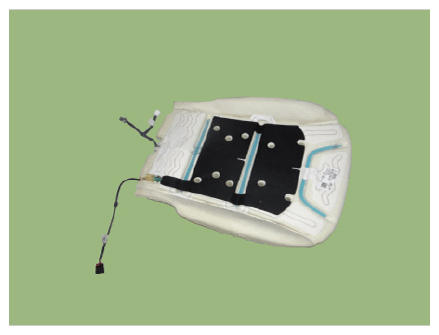

Occupant Detection System (ODS) Sensor

WARNING: This page is about a different car, the 2020 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: If the ODS sensor needs to be replaced, the seat cushion assembly should be replaced.

Disconnect the battery negative terminal.
NOTE: After disconnecting the negative battery terminal, wait at least 30 seconds.
Remove the front passenger seat assembly.
(Refer to Body - "FRONT SEAT ASSEMBLY ")
Disconnect the ODS sensor connector.
Remove the passenger seat cushion cover.
(Refer to Body - "FRONT SEAT CUSHION COVER ")

Courtesy of KIA MOTORS AMERICA, INC.
