Repair Procedures: Removal

WARNING: This page is about a different car, the 2020 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery negative terminal, and wait for at least thirty seconds before beginning work.

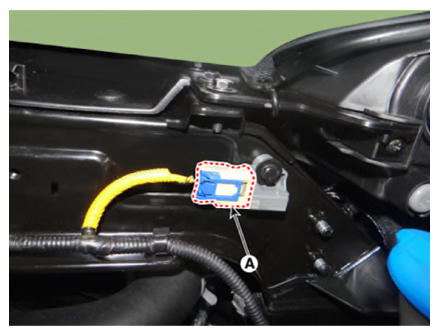

  2. Disconnect the front impact sensor connector (A).
    G13349775Courtesy of KIA MOTORS AMERICA, INC.

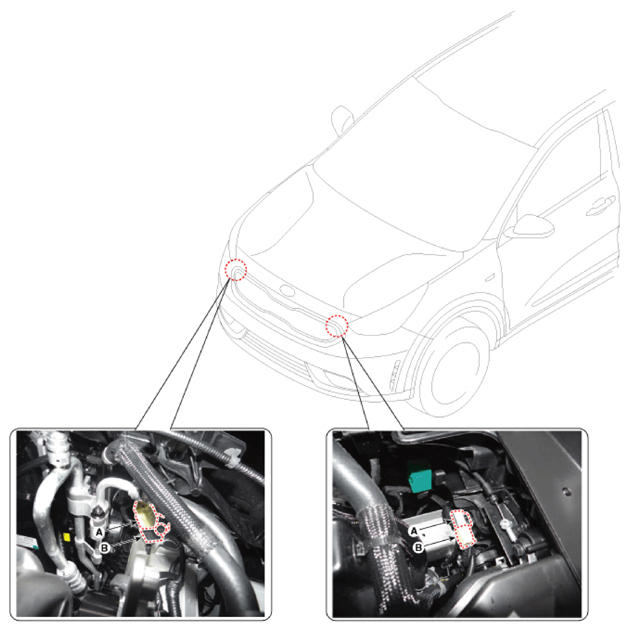

  3. Remove the front impact sensor (A) by loosening the nut after disconnecting the connector (B).

    Tightening torque:

    8.0 - 10.0 N.m (0.8 - 1.0 kgf.m, 5.9 - 7.3 lb-ft)

G13349776Courtesy of KIA MOTORS AMERICA, INC.
