Repair Procedures: Removal

WARNING: This page is about a different car, the 2020 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.

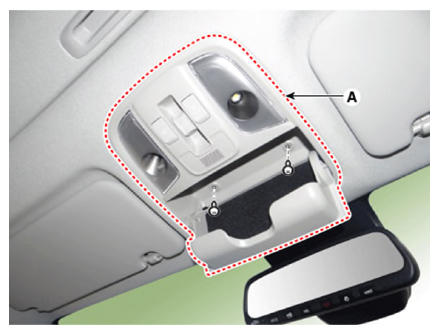

  2. Remove the overhead console lamp (A) after loosening the mounting screws.
    G13351124Courtesy of KIA MOTORS AMERICA, INC.

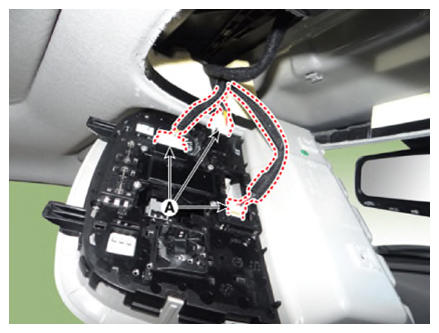

  3. Remove the overhead console after disconnecting the connectors (A).
    G13351125Courtesy of KIA MOTORS AMERICA, INC.
