Connector And Terminal Function

WARNING: This page is about a different car, the 2020 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.

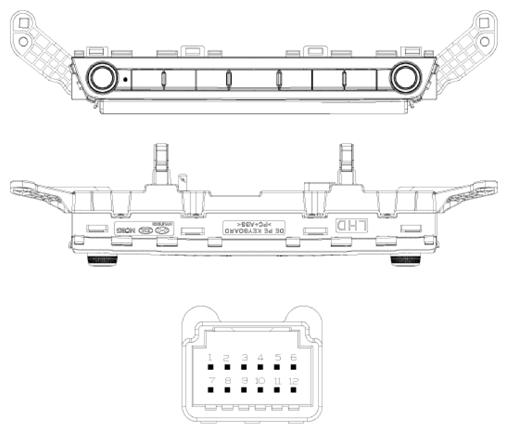

G13350841Courtesy of KIA MOTORS AMERICA, INC.
Pin Function
1 -
2 Battery (+)
3 ACC
4 IGN1
5 Illumination (-)
6 Illumination (+)
7 MM-CAN (Low)
8 MM-CAN (High)
9 -
10 Ground
11 -
12 -
