Repair Procedures: Removal

WARNING: This page is about a different car, the 2020 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the crash pad garnish assembly [RH].

    (Refer to Body - "CRASH PAD GARNISH ")

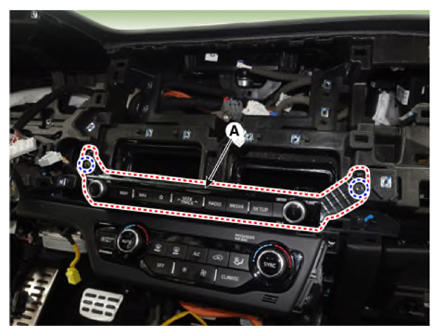

  2. Remove the keyboard (A) after loosening the mounting screws.
    G13350842Courtesy of KIA MOTORS AMERICA, INC.

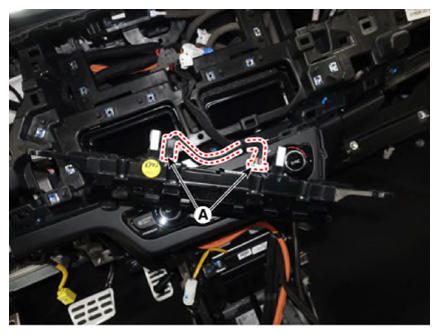

  3. Disconnect the connectors (A) from the keyboard.
G13350843Courtesy of KIA MOTORS AMERICA, INC.
