Repair Procedures: Removal

WARNING: This page is about a different car, the 2020 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the steering wheel assembly.

    (Refer to Steering System - "STEERING WHEEL ")

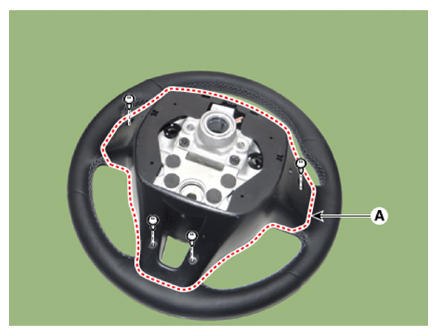

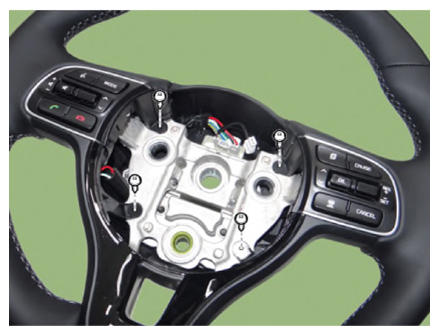

  3. Remove the steering back cover (A) after loosening the mounting screws.
    G13350873Courtesy of KIA MOTORS AMERICA, INC.
    G13350874Courtesy of KIA MOTORS AMERICA, INC.

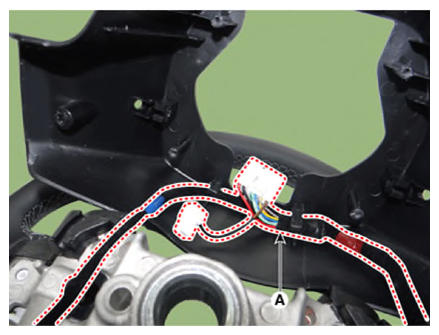

  4. Remove the wiring connector (A) from the steering back cover.
    G13350875Courtesy of KIA MOTORS AMERICA, INC.

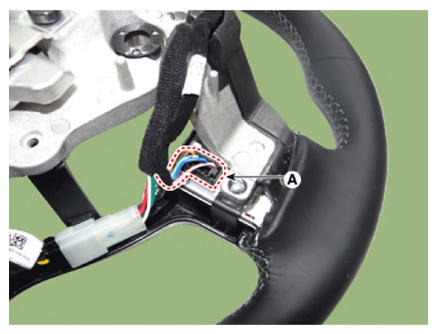

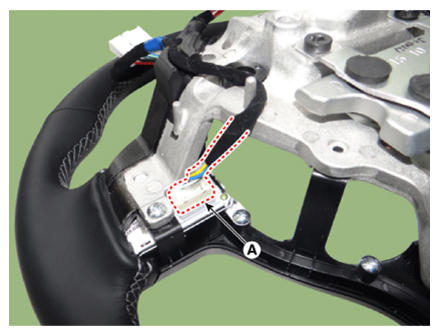

  5. Disconnect the steering wheel remote control connector (A).

    [LH]

    G13350876Courtesy of KIA MOTORS AMERICA, INC.

    [RH]

    G13350877Courtesy of KIA MOTORS AMERICA, INC.

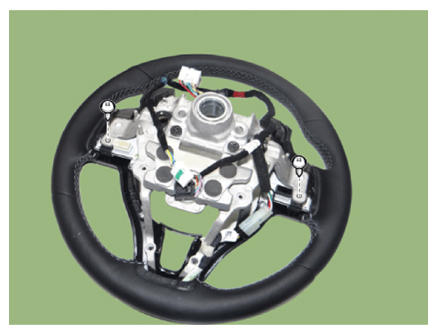

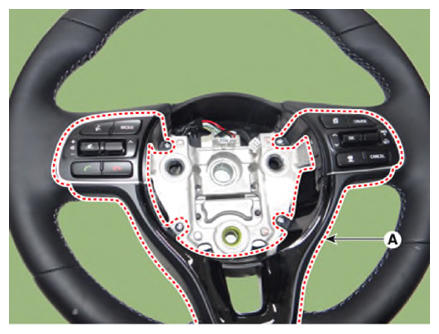

  6. Remove the steering wheel remote control assembly (A) after loosening the mounting screws.
    G13350878Courtesy of KIA MOTORS AMERICA, INC.
    G13350879Courtesy of KIA MOTORS AMERICA, INC.

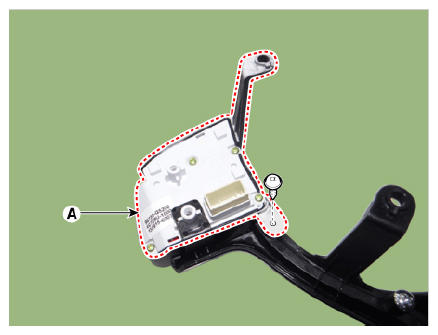

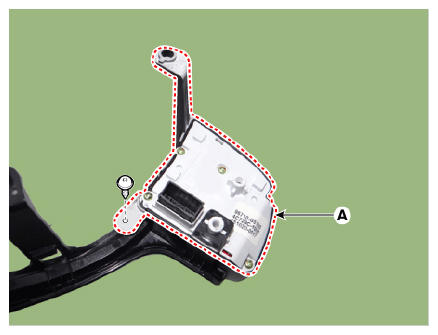

  7. Remove the steering wheel remote control (A) after loosening the mounting screws.

    [LH]

    G13350880Courtesy of KIA MOTORS AMERICA, INC.

    [RH]

    G13350881Courtesy of KIA MOTORS AMERICA, INC.
