Monitor DTC Status

Connect KDS to Data Link Connector (DLC).
Ignition "ON".

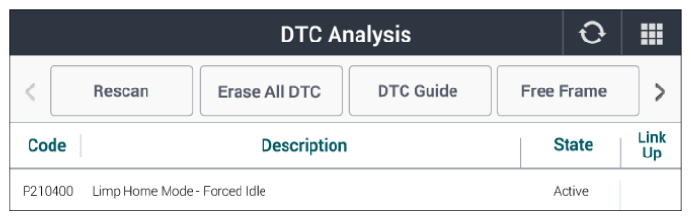

Monitor "Diagnostic Trouble Codes(DTC)" with KDS.

Courtesy of KIA MOTORS AMERICA, INC.
Is DTC status displayed as Present?
YES
- Performs the appropriate diagnostic procedure after checking other DTC.
- If the diagnostics have been performed correctly with no failure found, replace the ECM and then go to "VERIFICATION OF REPAIR " procedure.
NO
- Go to "VERIFICATION OF REPAIR " procedure.
