Check The Fuel Pressure Control Valve

  1. Ignition "OFF".
  2. Connect VMI to KDS and select "Oscilloscope".
  3. Ignition "ON"., Engine "ON"
  4. Measure signal waveform between Pin No. 2 (high) terminal of FPCV connector and chassis ground with VMI.
  5. Measure signal waveform between Pin No. 1 (low) terminal of FPCV connector and chassis ground with VMI.

    Specification:  Refer to Figures 1 and 2 below

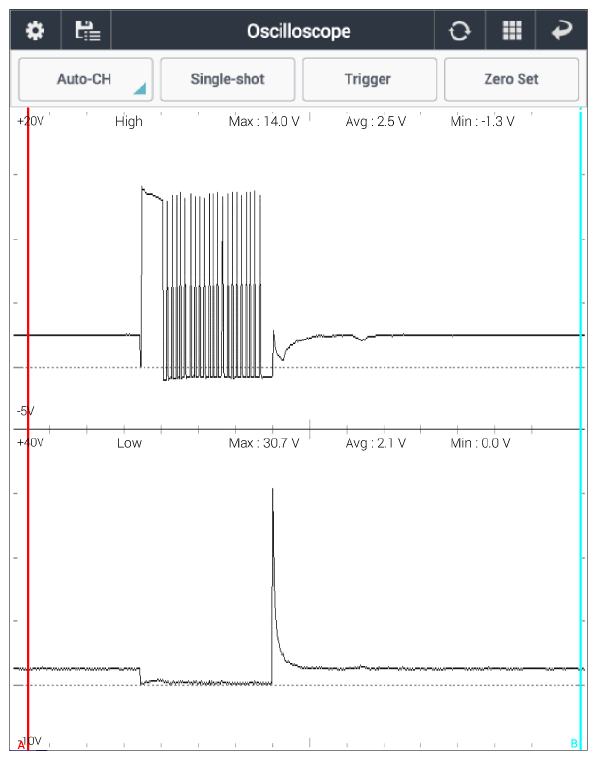

    G13409046Courtesy of KIA MOTORS AMERICA, INC.

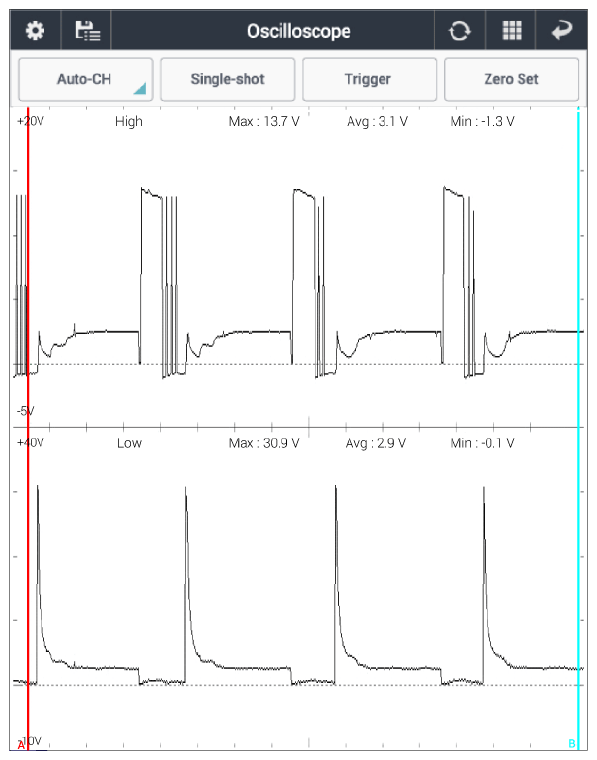

    G13409047Courtesy of KIA MOTORS AMERICA, INC.
  6. Does the FPCV operate properly? (Check variation)

    YES

    NO

    • Carefully re-do this troubleshooting guide steps.
    • If no problems were found with the circuits or connectors, replace the FPCV and go to "VERIFICATION OF REPAIR " procedure.
