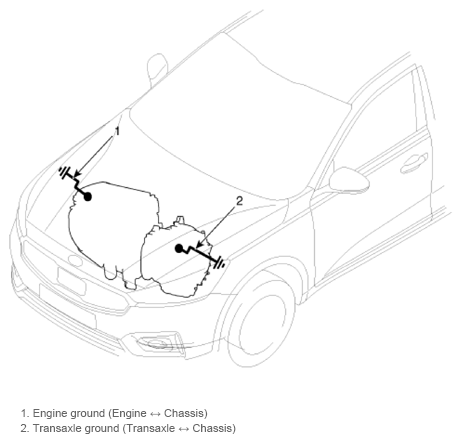

Wiring Harness Ground State Inspection
NOTE:
- Ground state
- Mounting bolt tightening state (Chassis)
- Mounting bolt tightening state (Engine)
- Check the status of ground fault by chassis paint
 Courtesy of KIA MOTORS AMERICA, INC.
|
NOTE:
Check the ground point.
(Refer to Appropriate System Wiring Diagrams - Harness Layout - "Ground Point")
