System Inspection

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Fig.1 to 5

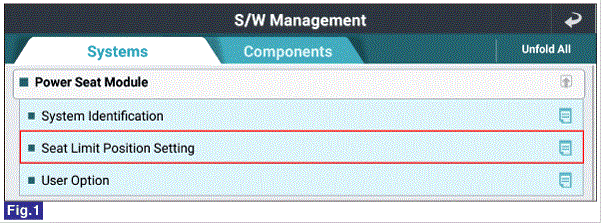

G00596797Courtesy of KIA MOTORS AMERICA, INC.

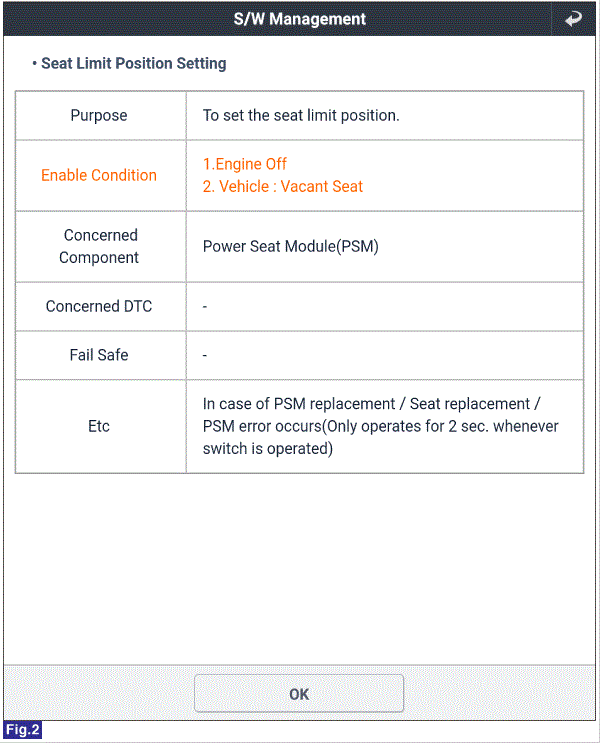

G00596798Courtesy of KIA MOTORS AMERICA, INC.

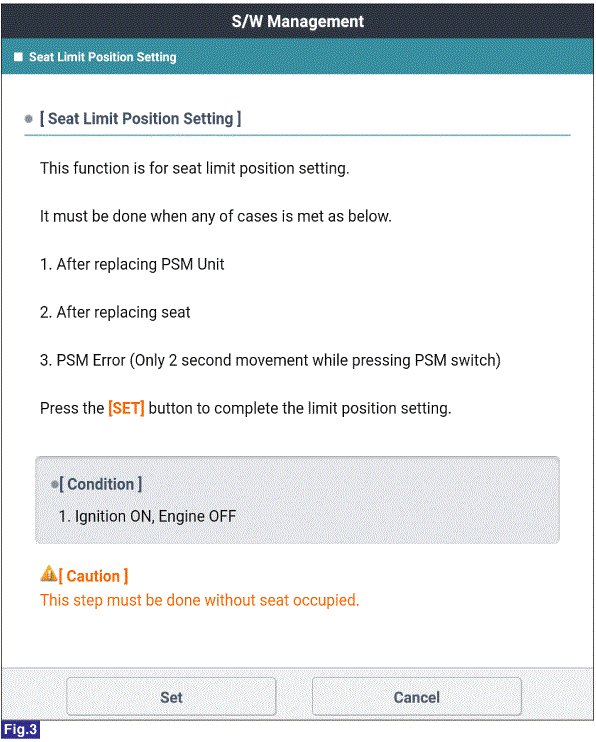

G00596799Courtesy of KIA MOTORS AMERICA, INC.

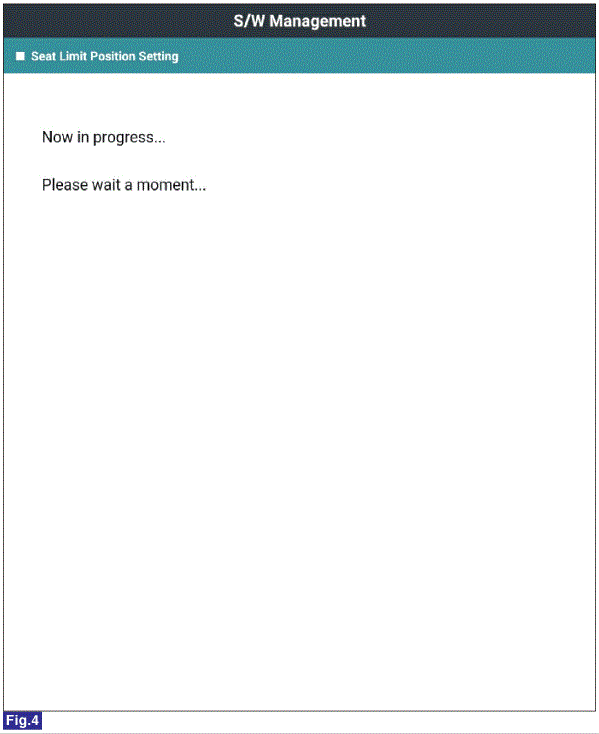

G00596800Courtesy of KIA MOTORS AMERICA, INC.

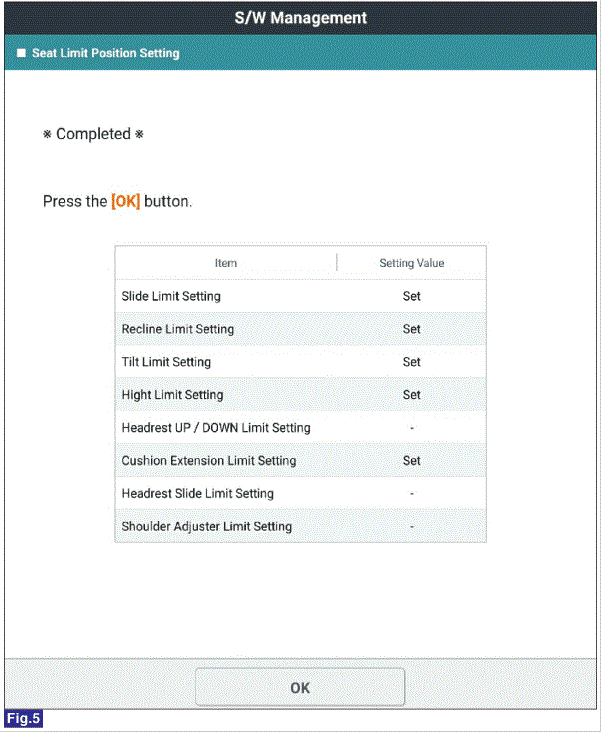

G00596801Courtesy of KIA MOTORS AMERICA, INC.

Good

No Good
