SMK, ECM/PCM Neutral Mode

  1. Ignition "ON". & Engine "OFF".
  2. Perform "Neutralize Mode" in the "Vehicle S/W Management" with KDS.
  3. Neutralize smart key unit with KDS. (Fig 1, 2, 3)
  4. Neutralize ECM/PCM with KDS. (Fig 1, 4, 5)
  5. Perform key teaching procedure for smart key unit with KDS. (Fig.6, 7, 8, 9, 10, 11)
    CAUTION: Pin code must be prepared to Neutralize Smart Key unit and to perform key teaching procedure.

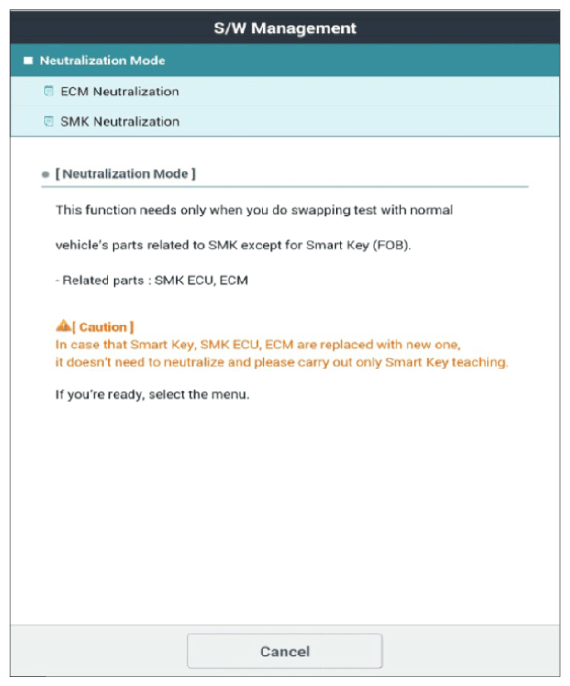

    G13410143Courtesy of KIA MOTORS AMERICA, INC.

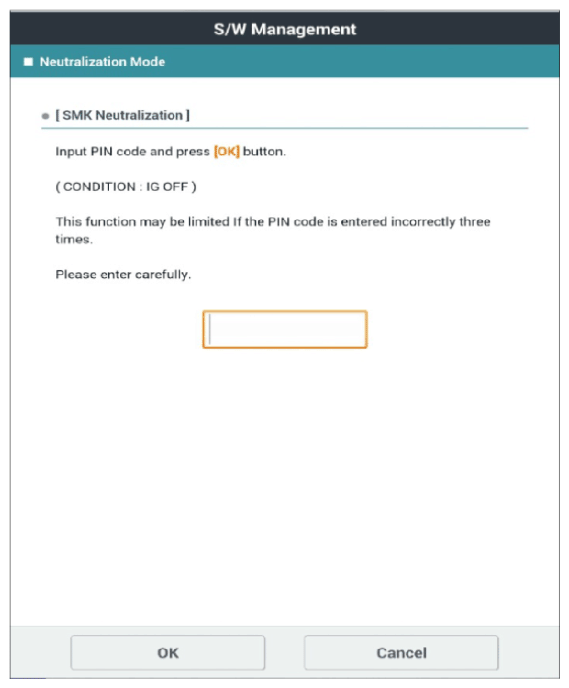

    G13410144Courtesy of KIA MOTORS AMERICA, INC.
    G13410145Courtesy of KIA MOTORS AMERICA, INC.
    G13410146Courtesy of KIA MOTORS AMERICA, INC.
    G13410147Courtesy of KIA MOTORS AMERICA, INC.
