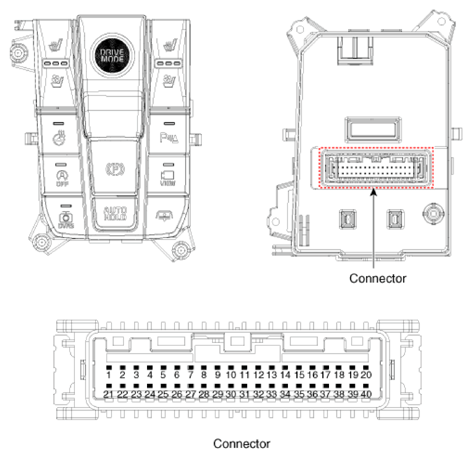

Connector and Terminal Function

G13405949Courtesy of KIA MOTORS AMERICA, INC.
Pin Function
1 Passenger heat mode switch signal
2 -
3 Passenger heat switch indicator (Min)
4 Passenger heat switch indicator (Mid)
5 Passenger heat switch indicator (Max)
6 -
7 -
8 -
9 DVRS switch signal
10 EPB Switch 3
11 EPB Switch 4
12 DVRS switch indicator
13 -
14 -
15 -
16 Driver heat switch indicator (Max)
17 Driver heat switch indicator (Mid)
18 Driver heat switch indicator (Min)
19 -
20 Driver heat mode switch signal
21 Battery (+)
22 Ignition
23 Illumination (+)
24 AUTO HOLD Switch
25 -
26 -
27 -
28 EPB Switch 1
29 EPB Switch 2
30 SVM switch signal
31 SVM switch indicator
32 PAS switch signal
33 PAS switch indicator
34 Rear curtain switch signal
35 Heated steering wheel switch signal
36 Heated steering wheel switch indicator
37 Drive mode switch (Counterclockwise)
38 Drive mode switch (Clockwise)
39 Illumination (-)
40 Ground
