Repair Procedures: Removal

NOTE:
  • When prying with a flat-tip screwdriver or using a prying trim tool, wrap protective tap around the tool and related parts to prevent damage.
  • Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
  • Be careful not to bend or scratch the trim and panels.
  1. Disconnect the negative battery terminal.

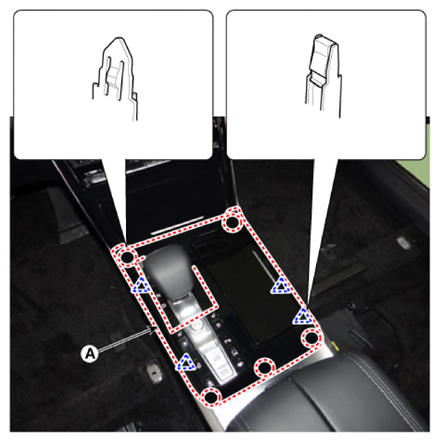

  2. Remove the console upper cover (A) by using a remover.
    G13405950Courtesy of KIA MOTORS AMERICA, INC.

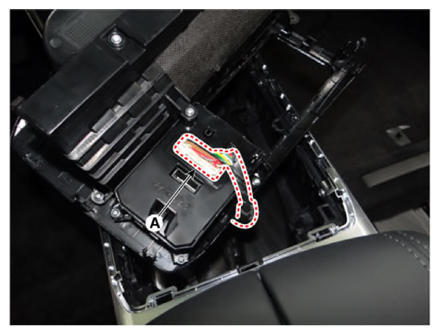

  3. Disconnect the console tray connectors (A).
    G13405951Courtesy of KIA MOTORS AMERICA, INC.

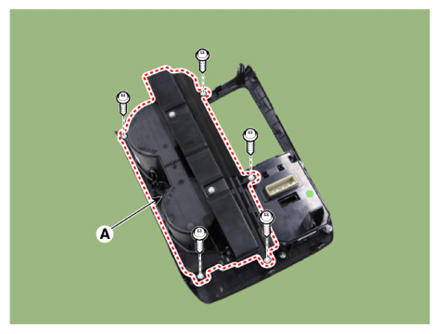

  4. Remove the cup holder assembly (A) after loosening the mounting screws.
    G13405952Courtesy of KIA MOTORS AMERICA, INC.

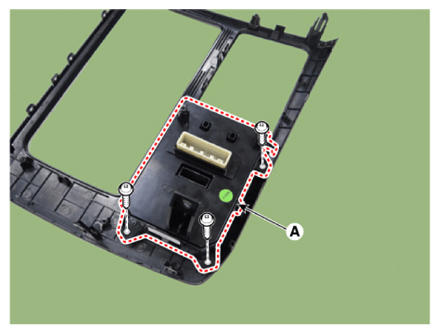

  5. Remove the console switch (A) after loosening the mounting screws.
    G13405953Courtesy of KIA MOTORS AMERICA, INC.
