Connector and Terminal function

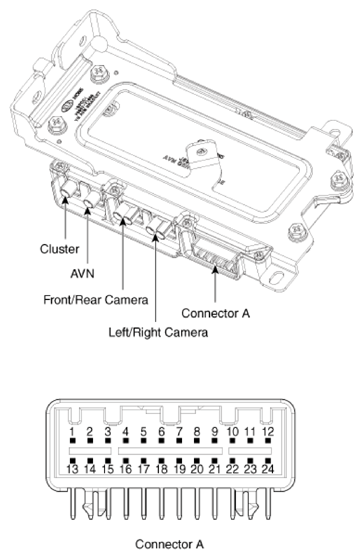

G13405930Courtesy of KIA MOTORS AMERICA, INC.
Pin Connector A
1 ACC
2 LED Indicator
3 Ground
4 -
5 -
6 C-CAN (Low)
7 -
8 -
9 Front camera (Power)
10 Rear camera (Power)
11 Left camera (Power)
12 Right camera (Power)
13 IGN 2 power
14 Switch_Input
15 -
16 -
17 -
18 C-CAN (High)
19 -
20 -
21 Front camera (Ground)
22 Rear camera (Ground)
23 Left camera (Ground)
24 Right camera (Ground)
Cluster Pin Function Pin Function
G13405931Courtesy of KIA MOTORS AMERICA, INC.
 1 Video output_Cluster 2 Ground
AVN Pin Function Pin Function
G13405932Courtesy of KIA MOTORS AMERICA, INC.
 1 Video output_AVN 2 Ground
Front/Rear Camera Pin Function Pin Function
G13405933Courtesy of KIA MOTORS AMERICA, INC.
 1 Rear Video input 2 Front Video input
3 Ground
Lett/Right Camera Pin Function Pin Function
G13405934Courtesy of KIA MOTORS AMERICA, INC.
 1 Right Video input 2  Left Video input
3 Ground
