Side View Camera

  1. Disconnect the negative (-) battery terminal.
  2. Remove the outside rear view mirror.

    (Refer to Body - "OUTSIDE REAR VIEW MIRROR ")

  3. Remove the outside rear view mirror scalp.

    (Refer to Body - "OUTSIDE REAR VIEW MIRROR ")

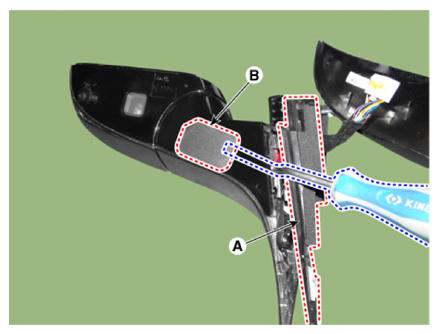

  4. Using a screwdriver or remover, remove the pad (A) and cover (B).
    G13405943Courtesy of KIA MOTORS AMERICA, INC.
    NOTE:
    • Wrap the tool with protective tape or cloth to prevent damage to the parts.
    • Do not insert the tool too deeply.

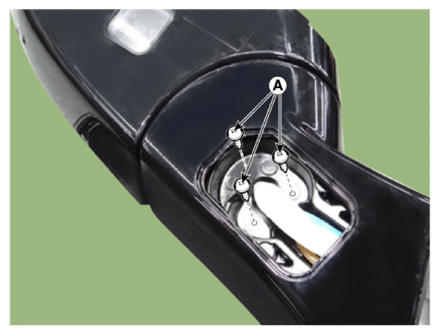

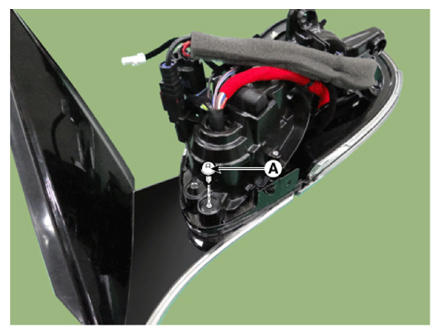

  5. Loosen the screws (A).
    G13405944Courtesy of KIA MOTORS AMERICA, INC.
    G13405945Courtesy of KIA MOTORS AMERICA, INC.

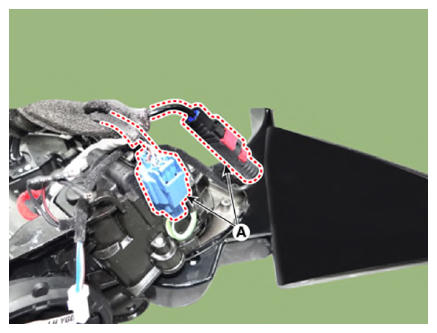

  6. Disconnect the side view camera connectors (A).
    G13405946Courtesy of KIA MOTORS AMERICA, INC.

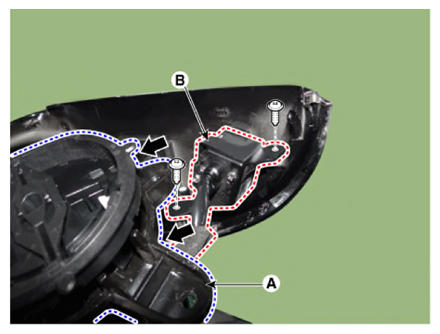

  7. Push the mirror actuator assembly (A) in the direction of arrow, remove the side view camera (B) after loosening the screws.
    G13405947Courtesy of KIA MOTORS AMERICA, INC.
