Front View Camera

  1. Disconnect the negative battery terminal.
  2. Remove the front bumper assembly.

    (Refer to Body - "FRONT BUMPER ASSEMBLY ")

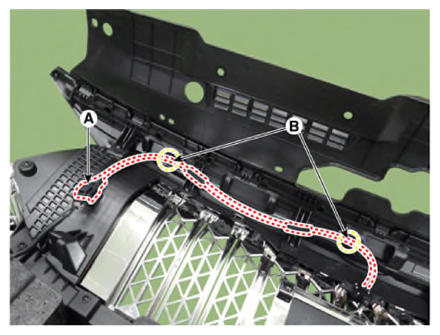

  3. Disconnect the front view camera connector (A) and wiring fasteners (B).
    G13405941Courtesy of KIA MOTORS AMERICA, INC.
  4. Remove the front view camera (A) after loosening the mounting screws.
    G13405942Courtesy of KIA MOTORS AMERICA, INC.
