Repair Procedures: Inspection

  1. Check for resistance between terminals in each switch position.

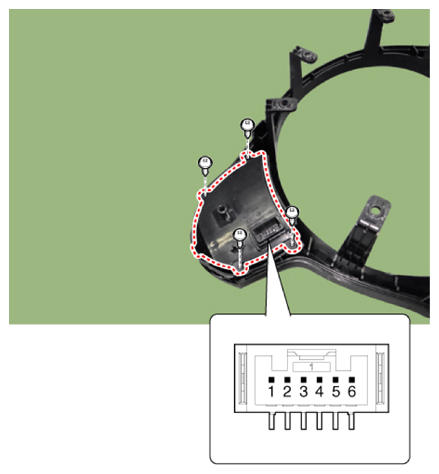

G13405872Courtesy of KIA MOTORS AMERICA, INC.
Switch Connector terminal Resistance (±3%)
Cancel 2-6 390 Ω
SET - 610 Ω
RES + 910 Ω
Cruise ON/OFF 1.38 kΩ
SCC 3.63 kΩ
Trip 1 (group) 1-6 390 Ω
Trip 2 (up) 610 Ω
Trip 3 (down) 910 Ω
Trip 4 (ok) 1.38 kΩ
Trip 5 (LFA) 3.63 kΩ
