Cruise Control System
>>
Cruise Control Switch
>>
Schematic Diagrams
>>

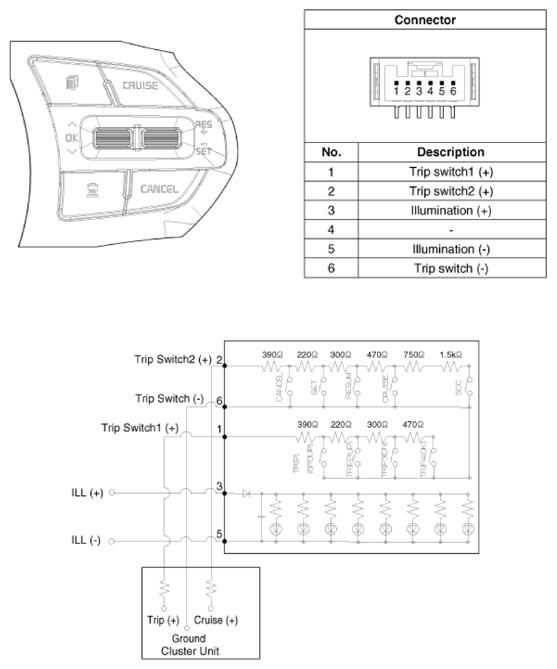

Circuit Diagram

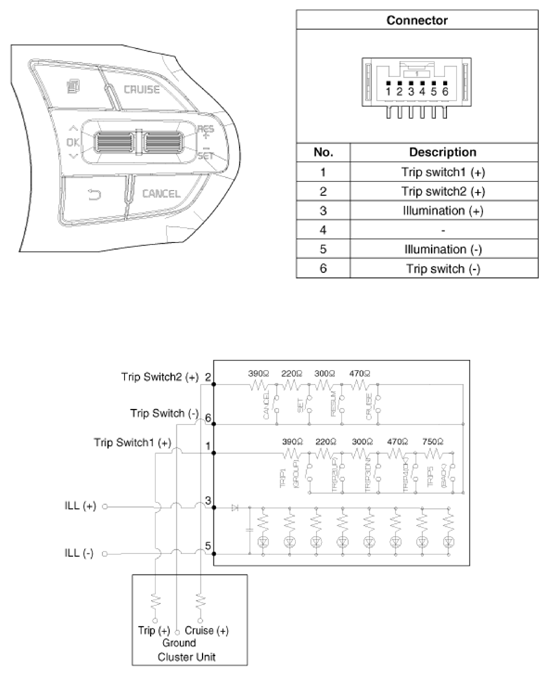

Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
