Home >> Kia >> 2020 >> Cadenza Technology >> Repair and Diagnosis >> Accessories & Equipment >> Cruise Control Systems >> Cruise Control System >> Cruise Control Switch >> Repair Procedures >> Removal >> [RH]

Repair Procedures: Removal: [RH]

G13403188Courtesy of KIA MOTORS AMERICA, INC.
  1. Remove the steering wheel remote control assembly (A) after loosening the mounting screws.
    G13403189Courtesy of KIA MOTORS AMERICA, INC.
  2. Remove the steering wheel remote control (A) after loosening the mounting screws.

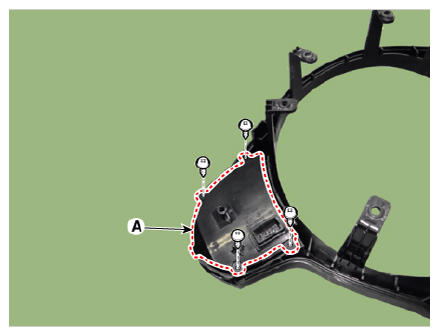

    G13403190Courtesy of KIA MOTORS AMERICA, INC.
