Hood Switch Inspection

  1. Remove the front bumper assembly.

    (Refer to " FRONT BUMPER ASSEMBLY  ")

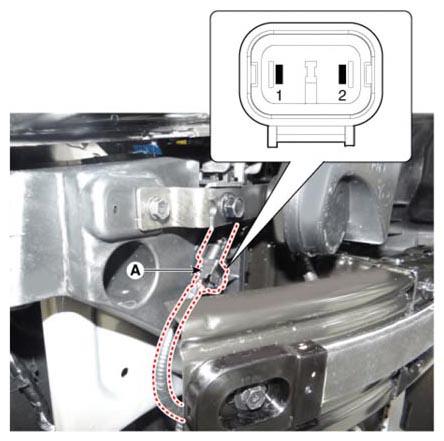

  2. Disconnect the hood switch connector (A).
    G12803666Courtesy of KIA MOTORS AMERICA, INC.

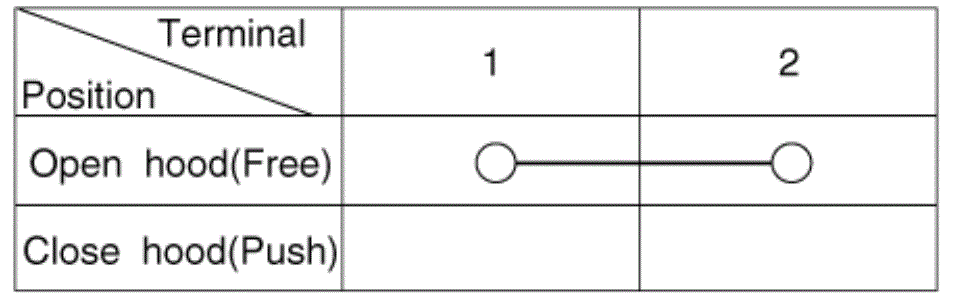

  3. Check for continuity between the terminals and ground as shown in the illustration below.

    (Refer to " HOOD LATCH  ")

    G12803667Courtesy of KIA MOTORS AMERICA, INC.
