How To Use

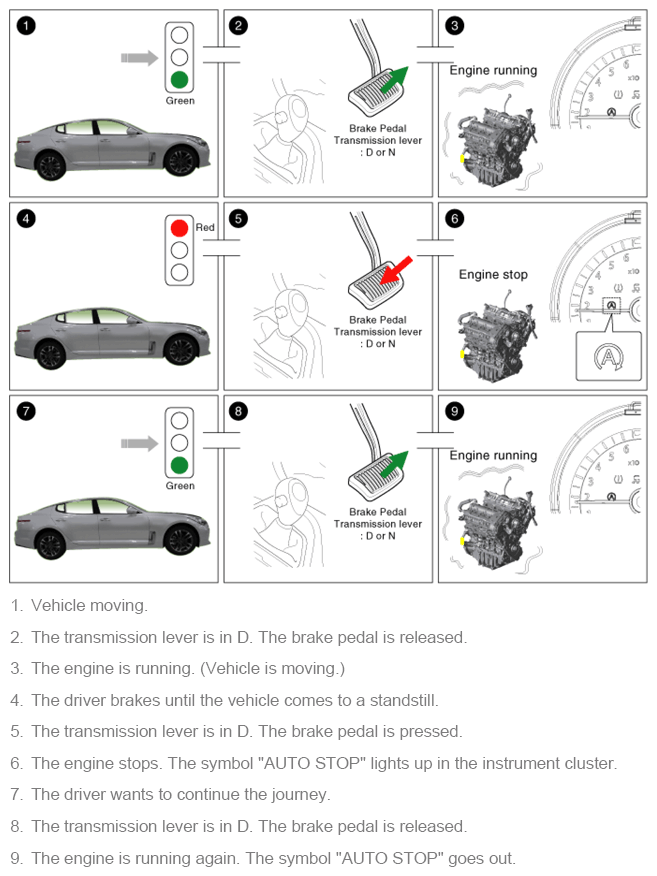

  1. Engine Auto-Stop: D-range + brake pedal is pressed.
    G12803593Courtesy of KIA MOTORS AMERICA, INC.
  2. Engine Auto-Start
    1. Brake pedal is released.
    2. Brake pedal is pressed + Manual range (Sports mode)
    3. Brake pedal is pressed + R range
      G12803594Courtesy of KIA MOTORS AMERICA, INC.
      G12803595Courtesy of KIA MOTORS AMERICA, INC.
